Roto E-Tec Control

Wired sensors for security technology and room climate

  • Security technology
  • Energy efficiency through ventilation and temperature control
  • Can be integrated into BUS or smart home systems
  • Extractor fan controller
  • Deadbolt switch contacts

Whether security technology or indoor climate: With Roto E-Tec Control, the status of windows, doors and sliding elements made from timber, PVC and aluminium can be monitored easily and reliably. As the basis for intelligent building system technology, Roto E-Tec Control contact elements transmit information to intruder alarm systems, temperature or other control systems.

MVS

Security technology with Roto E-Tec Control | MVS

The magnetic locking and opening monitoring system Roto E-Tec Control | MVS provides individual solutions for break-in and danger avoidance.

The system monitors the status of the window, door or sliding element. As soon as the magnetic field of the MVS is disturbed, the contact element sends a signal to the alarm control panel.

Technical data Roto E-Tec Control | MVS contact element

 Screwed-on Concealed
Frame materialTimber, PVC, aluminium Timber, PVC
Hardware systems
VdS approvalClass B and Class C

Class B and Class C

*only Class B

EN approvalGrade 2 and Grade 3

Grade 2 and Grade 3

*only Grade 2

Types of monitoringOpening, locking and combined opening and locking monitoring Opening, locking and combined opening and locking monitoring
IP ratingIP67 IP67
VisibilityInvisible when the element is closed Invisible when the element is open and closed

MTS

Ventilation and temperature control with Roto E-Tec Control | MTS

Temperature loss during the heating or cooling period can be effectively reduced with the Roto E-Tec Control | MTS magnetic thermostat sensor. As soon as the window, door or sliding element is opened, the sensor ensures together with a control system provided by the customer that the heating output is automatically reduced or the air conditioner is switched off.

After the window is closed, the restored magnetic contact signals that the temperature control can switch into the normal temperature again.

Technical data Roto E-Tec Control | MTS contact element

 Screwed-on Concealed
Frame materialTimber, PVC, aluminium Timber, PVC
Hardware systems
Types of monitoringOpening, locking and combined opening and locking monitoring Opening, locking and combined opening and locking monitoring
IP ratingIP67 IP67
VisibilityInvisible when the element is closed Invisible when the element is open and closed

DAS

Extractor fan control with Roto E-Tec Control | DAS

The Roto E-Tec Control | DAS extractor fan controller controls the proper use of an extractor fan.

With open flame, e.g. fireplaces or gas single-storey heating systems, the extractor fan in the kitchen may only be switched on when a window is open. If all windows are closed, the extractor fan controller automatically interrupts the power supply, preventing a possible danger of suffocation from carbon monoxide.

Technical data Roto E-Tec Control | DAS

Frame materialTimber, PVC, aluminium
Hardware systemsRoto NX and Roto NT
ApprovalDIBt (only applies when enclosed magnetic switch set is used)
Switching capacity230 V AC, 6 A, 1400 W, one-pin

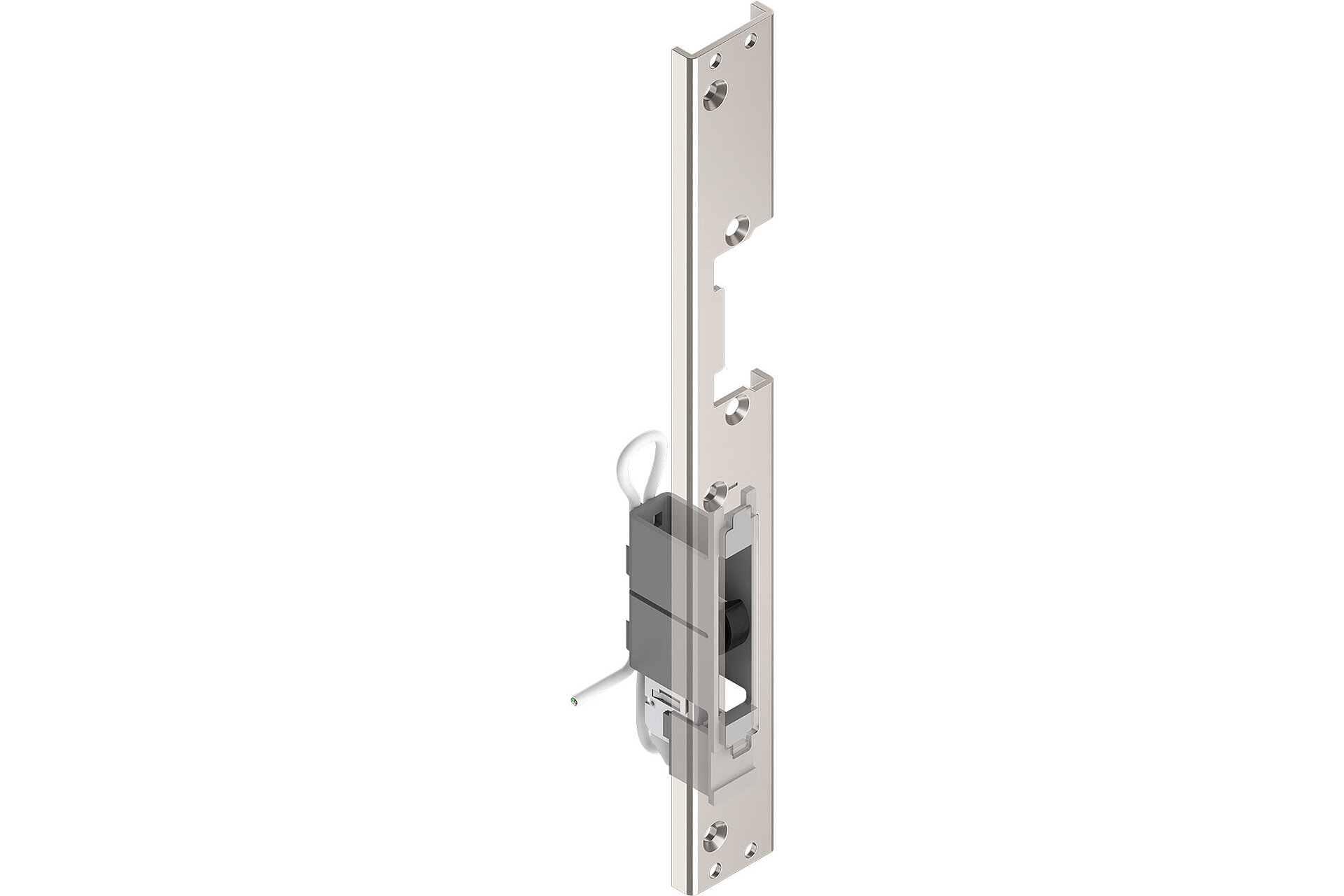

Deadbolt switch contacts

Roto Safe | Deadbolt switch contacts

A deadbolt switch contact is used for locking monitoring on multipoint lockings. It is an electrical switch contact which is built into the frame component and is actuated by the main deadbolt.

Technical data Roto Safe | Deadbolt switch contacts

Frame materialTimber, PVC, aluminium
Hardware systemsRoto Safe multi-point locking systems
VdS approvalClass C
Type of monitoringLocking monitoring
IP ratingIP 67 in accordance with DIN 40050

Accessories

Control unit contact elements

Control unit contact elements

Testing unit for checking the function of installed contacts.

Roto E-Tec Control MVS corner drive, screwed

MVS Corner drive, screwed

Corner drive with magnet for contact elements screwed into the rebate.

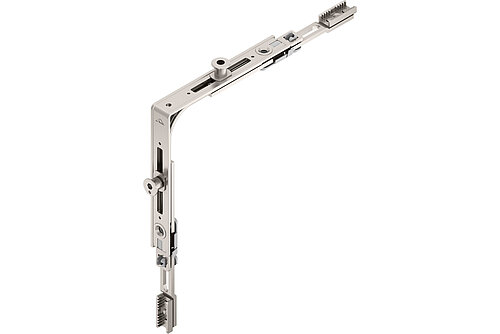

Roto E-Tec Control MVS corner drive, concealed

MVS Corner drive, concealed

Corner drive with magnetic pin for contact elements concealed beneath a locking component.

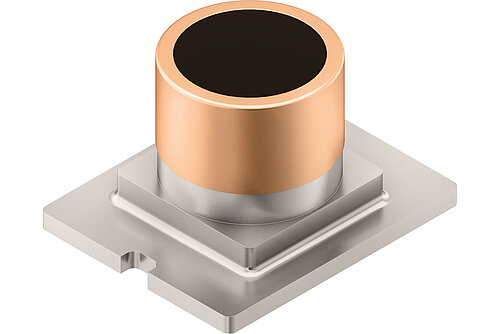

Roto E-Tec Control MVS Plug-in magnet

MVS Plug-in magnet

Magnet for contact elements screwed into the rebate in combination with Roto AL hardware for aluminum windows and balcony doors.

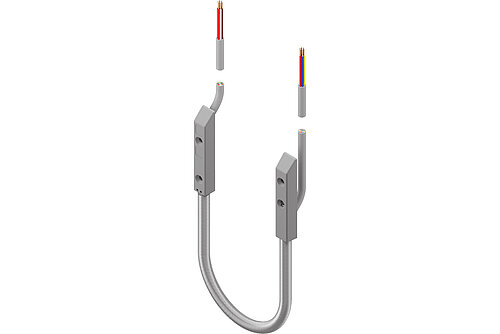

Roto E-Tec Control cable junction, detachable

Cable junction, detachable

6-pole miniature cable junction concealed in the window rebate for windows and balcony doors.

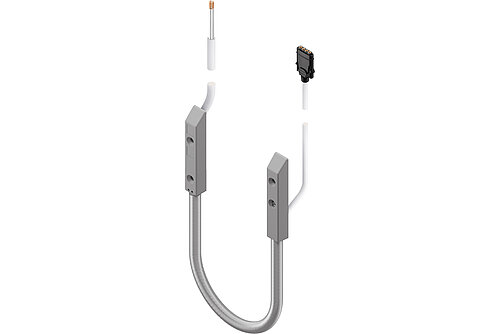

Roto E-Tec Control cable junction, detachable, with alarm glass connection

Cable junction, detachable, with alarm glass connection

6-pole miniature cable junction concealed in the window rebate for windows and balcony doors. Including alarm glass connection on the sash side.
