Universal hardware for minimum effort in Parallel Sliding and Tilt&Slide systems

  • Modular sliding system: high proportion of common parts across all variants
  • Simple and fast manufacturing thanks to compatible assemblies
  • Universal central locking system and standard window handle for all variants
  • Intuitive and comfortable operation as well as quiet running
  • Burglary protection up to RC 2N (even with night ventilation)

Minimal. Universal.

Roto Patio Alversa enables different opening versions and ventilation functions for Parallel Sliding and Tilt&Slide systems made of timber, PVC and aluminium up to a sash weight of 200 kg to be produced with minimum effort.
The combination of a universal central locking system, universal handle and modular sliding system reduces the outlay required in manufacturing, storage and logistics to a minimum with universal use.

Roto Patio Alversa

Produktvideo für Verarbeiter

Roto Patio Alversa

Produktvideo für Endkunden

Minimal storage and logistics outlay

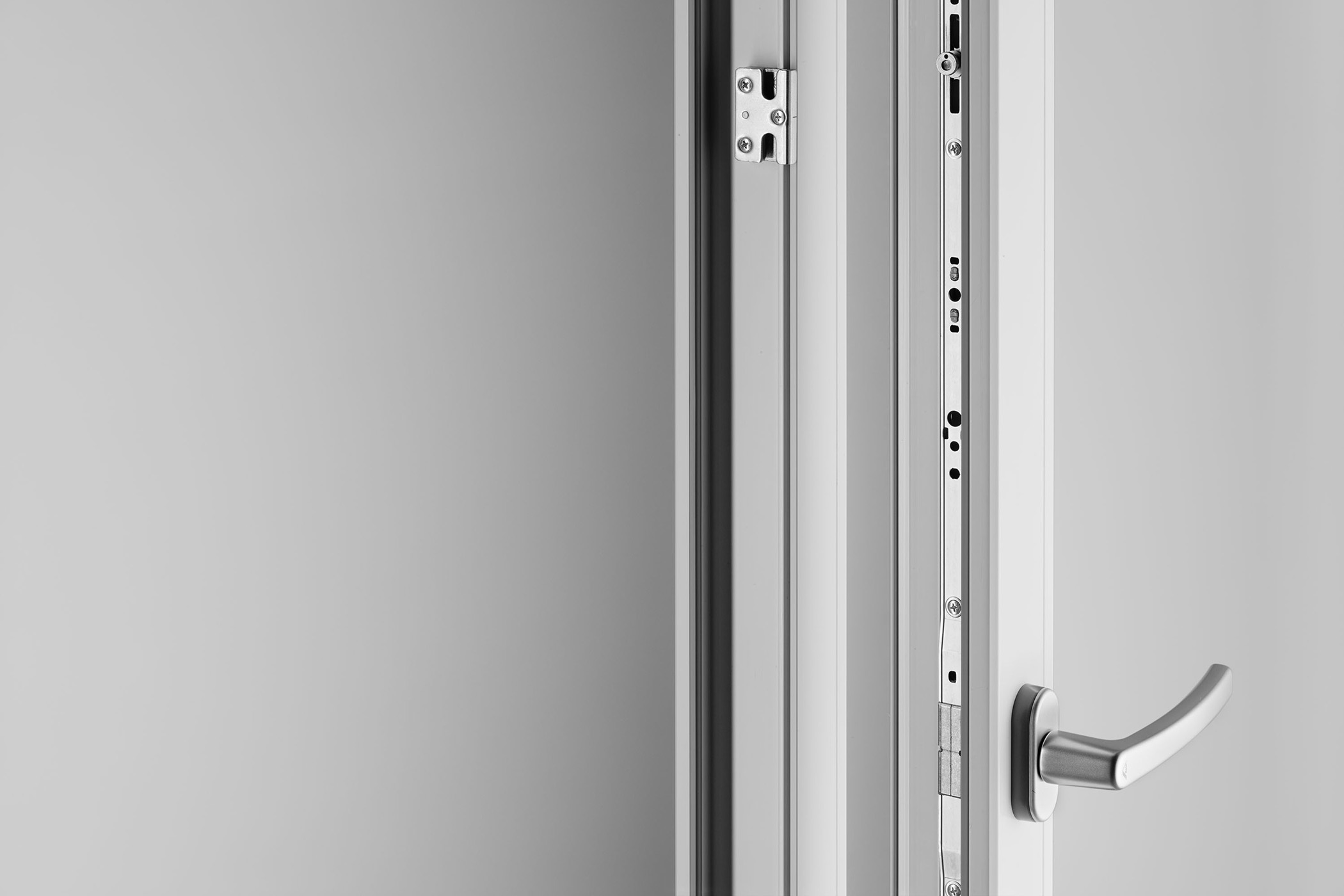

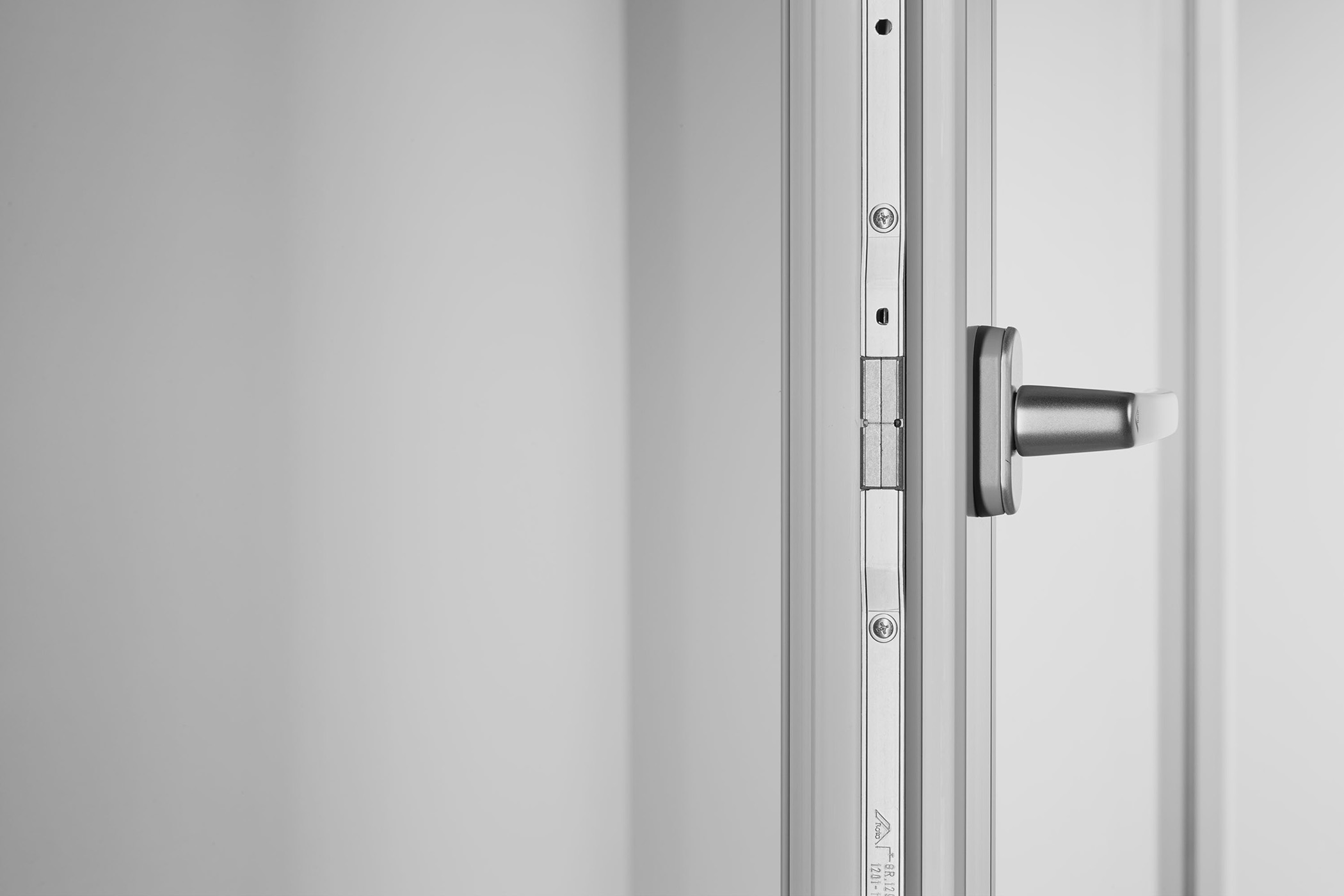

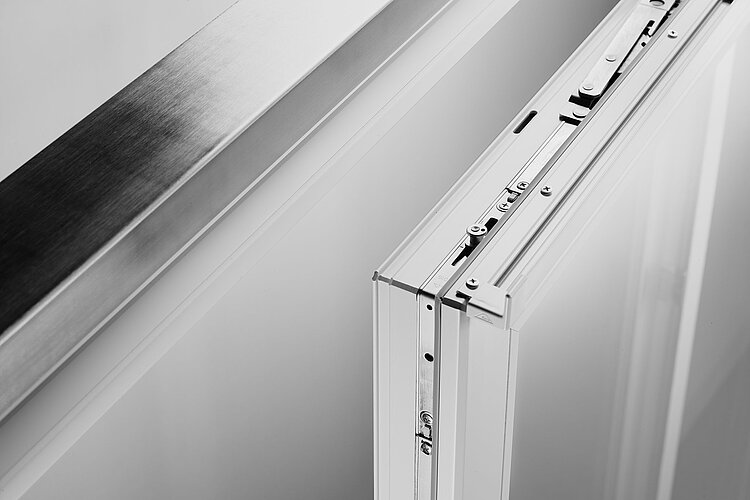

The same central locking system from the established Roto NT and Roto AL ranges is used for all Roto Patio Alversa variants. Furthermore, the same handle can be used for all variants.

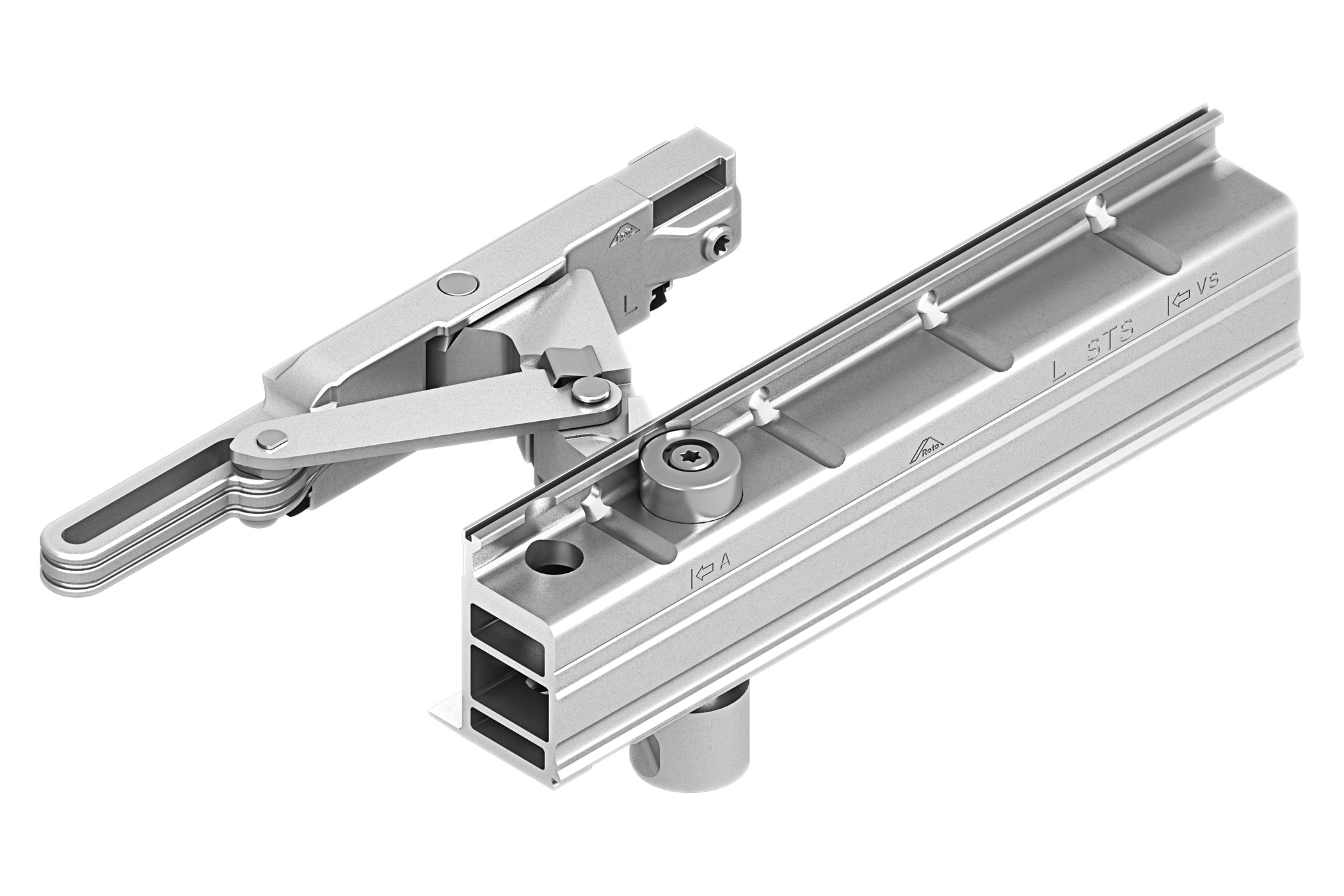

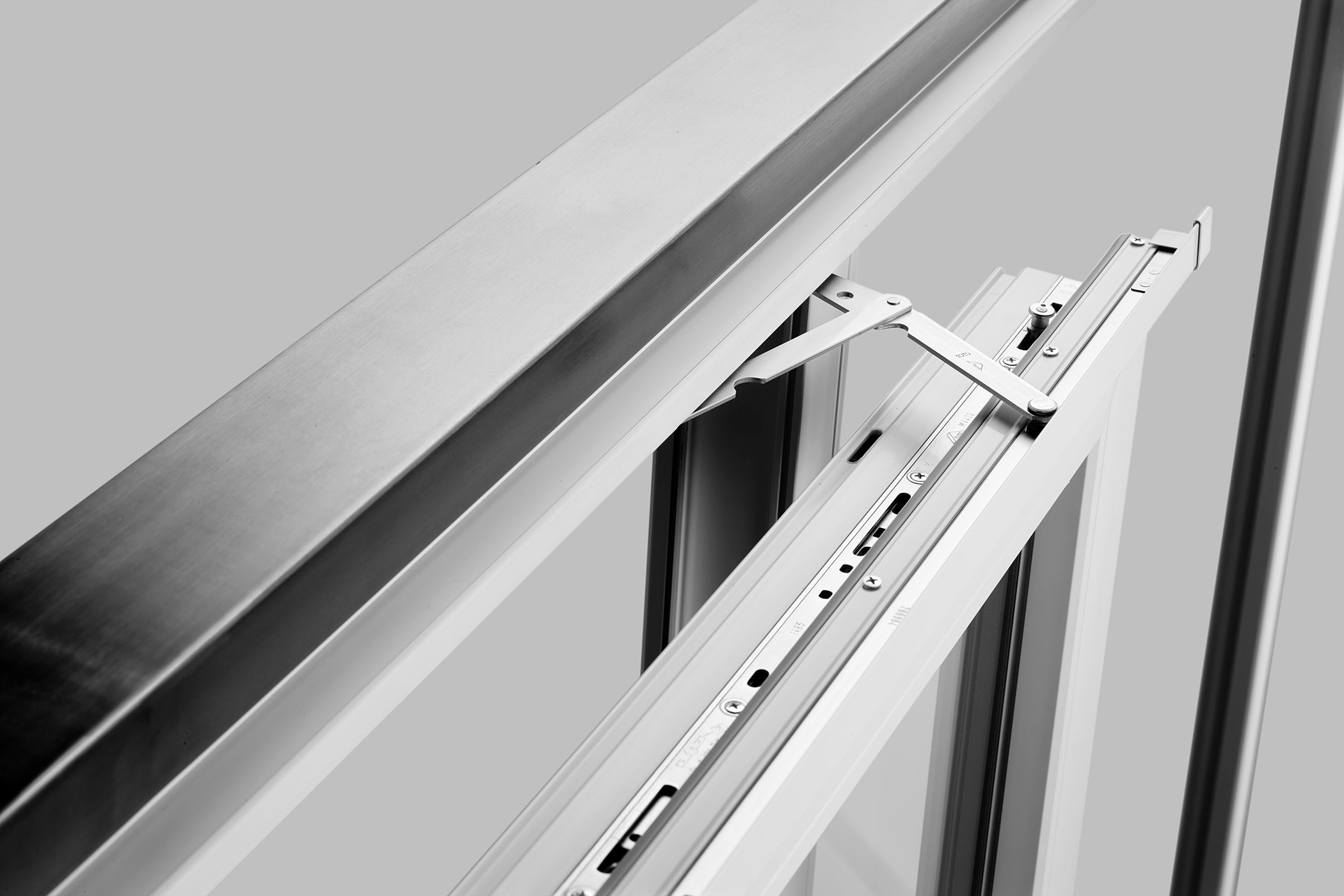

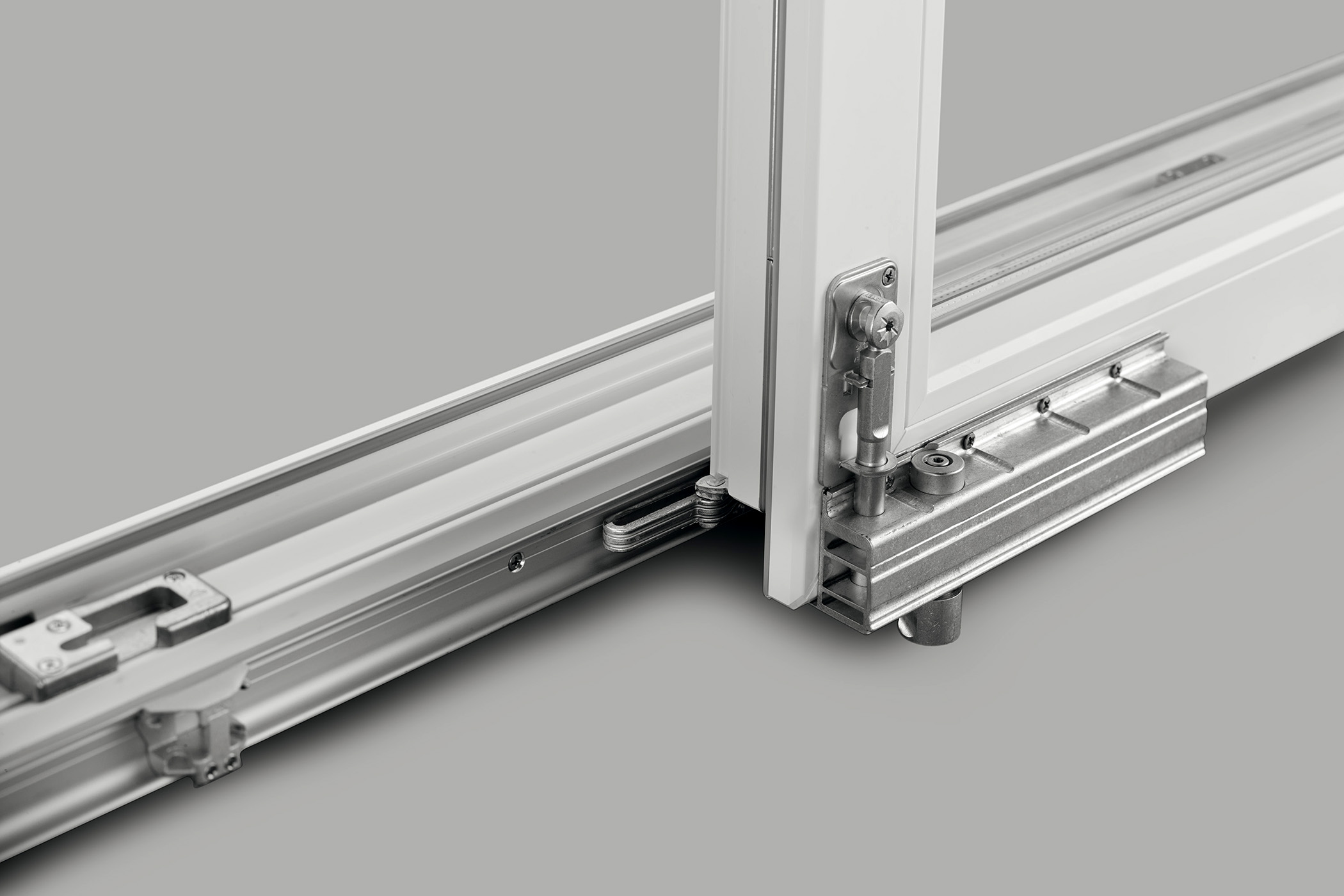

Intelligently combining these components with specific Roto Patio components, such as a bogie, scissors-slider or track set, ensures that a high proportion of common parts can be used across all variants.

Minimal manufacturing outlay

Compatible assemblies and standardised work steps simplify assembly. The flexible replacement of individual components makes it possible to switch rapidly between the Parallel Sliding and Tilt&Slide systems in manufacturing, including the various ventilation functions.
Can be processed on the standard production line.

Minimal administrative outlay

Less administrative outlay is required, as the reduced variety of parts simplifies the process of creating and managing master data.

Variants

Roto Patio Alversa meets individual customer requirements as a result of its modular design. Just one system provides four different solutions, as Roto Patio Alversa can be designed as a Parallel Sliding or a Tilt&Slide system. Night or tilt ventilation can be selected depending on the version.
The combination of a Parallel Sliding system and tilt ventilation is unique on the market.

  • With tilt ventilation
  • Standard Tilt&Turn profiles made from timber, PVC and aluminium
  • Standard Roto central locking system (Roto NT / Roto AL)
  • Standard Roto window handles
  • Sash weight max. 160 kg

  • Without/with night ventilation
  • Standard Tilt&Turn profiles made from timber, PVC and aluminium
  • Standard Roto central locking system (Roto NT / Roto AL)
  • Standard Roto window handles
  • Optimised sash run-in and run-out characteristics as a result of integrated damping elements (bogie and scissors-slider)
  • Sash weight max. 200 kg

  • With tilt ventilation
  • Standard Tilt&Turn profiles made from timber, PVC and aluminium
  • Standard Roto central locking system (Roto NT / Roto AL)
  • Standard Roto window handles
  • Optimised sash run-in and run-out characteristics as a result of integrated damping elements (bogie and scissors-slider)
  • Sash weight max. 160 kg

  • With comfortable tilt ventilation
  • Tilt ventilation can be conveniently controlled using the window handle
  • Standard Tilt&Turn profiles made from timber, PVC and aluminium
  • Standard Roto central locking system (Roto NT / Roto AL)
  • Standard Roto window handles
  • Optimised sash run-in and run-out characteristics as a result of integrated damping elements (bogie and scissors-slider)
  • Sash weight max. 200 kg

Technical data

Timber and PVC

Sash rebate width
max. 2000 mm
Sash rebate height
max. 2700 mm
Sash weight
max. 200 kg
Rebate clearance
12 mm
Overlap width
18 – 22 mm
Minimum overlap height
15 mm
Hardware axis
9 / 13 mm (9 mm not possible with Roto Patio Alversa | PS with night ventilation)
Retracting distance
max. 130 mm
Security
RC 1 N and RC 2 / RC 2N
Sash arrangement
Diagram A, C and D
Profiles
only running inside

Aluminium

Sash width
max. 2000 mm
Sash height
max. 2700 mm
Sash weight
max. 200 kg
Rebate clearance
11,5 – 12 mm
Minimum overlap height
7 mm
Hardware axis
10 mm
Retracting distance
max. 122 mm
Frame groove
V.01 und V.02
Sash groove
15/20
Security
RC 2 / RC 2N
Sash arrangement
Diagram A, C and D
Profiles
only running inside

Accessories

Additional lock-in position

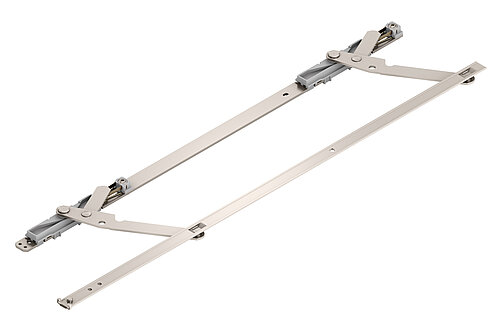

The especially high-performance additional lock-in position for installation in the sliding scissor stay on the Roto Patio Alversa | PS Air and KS system can be relied upon to prevent uncontrolled closure, even in the case of extremely heavy leaves. It is only activated in the tilt position.

Tilt assistance

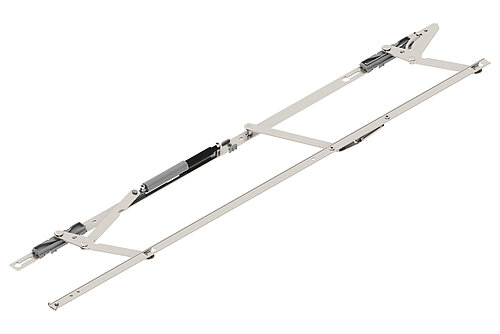

An additional tilt assistance element for installation in the sliding scissor stay on the Roto Patio Alversa | PS Air Com Tilt&Slide system reduces the torque at the handle. With this, even large and heavy sliding doors with a weight of up to 200 kg can be operated effortlessly.

Handle

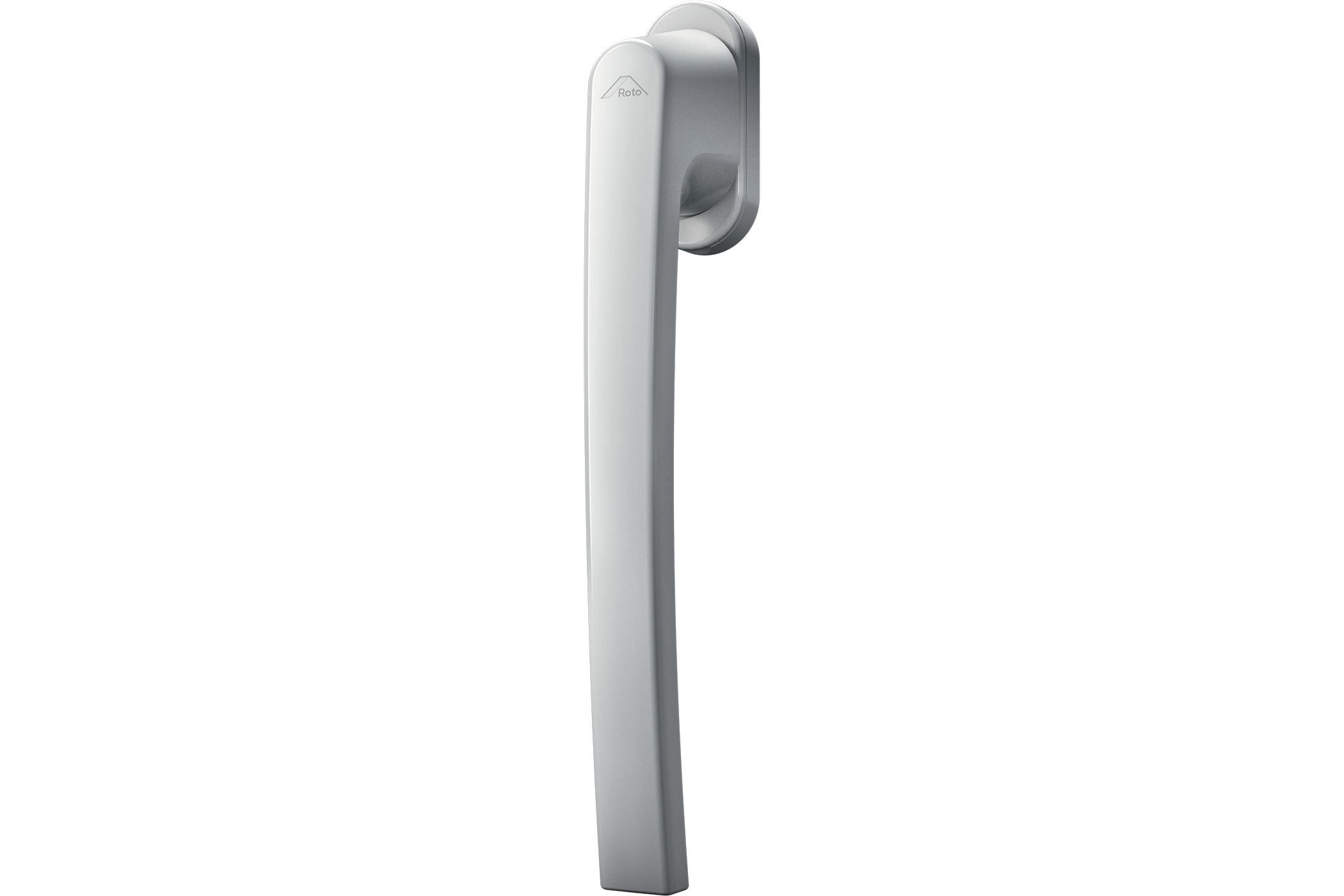

Standardised appearance: use of standard window handles like on conventional windows. Many versions are possible: colours, lockable, handle sets, etc. The 200 mm-long handle reduces the forces required for operation.
