Roto NX

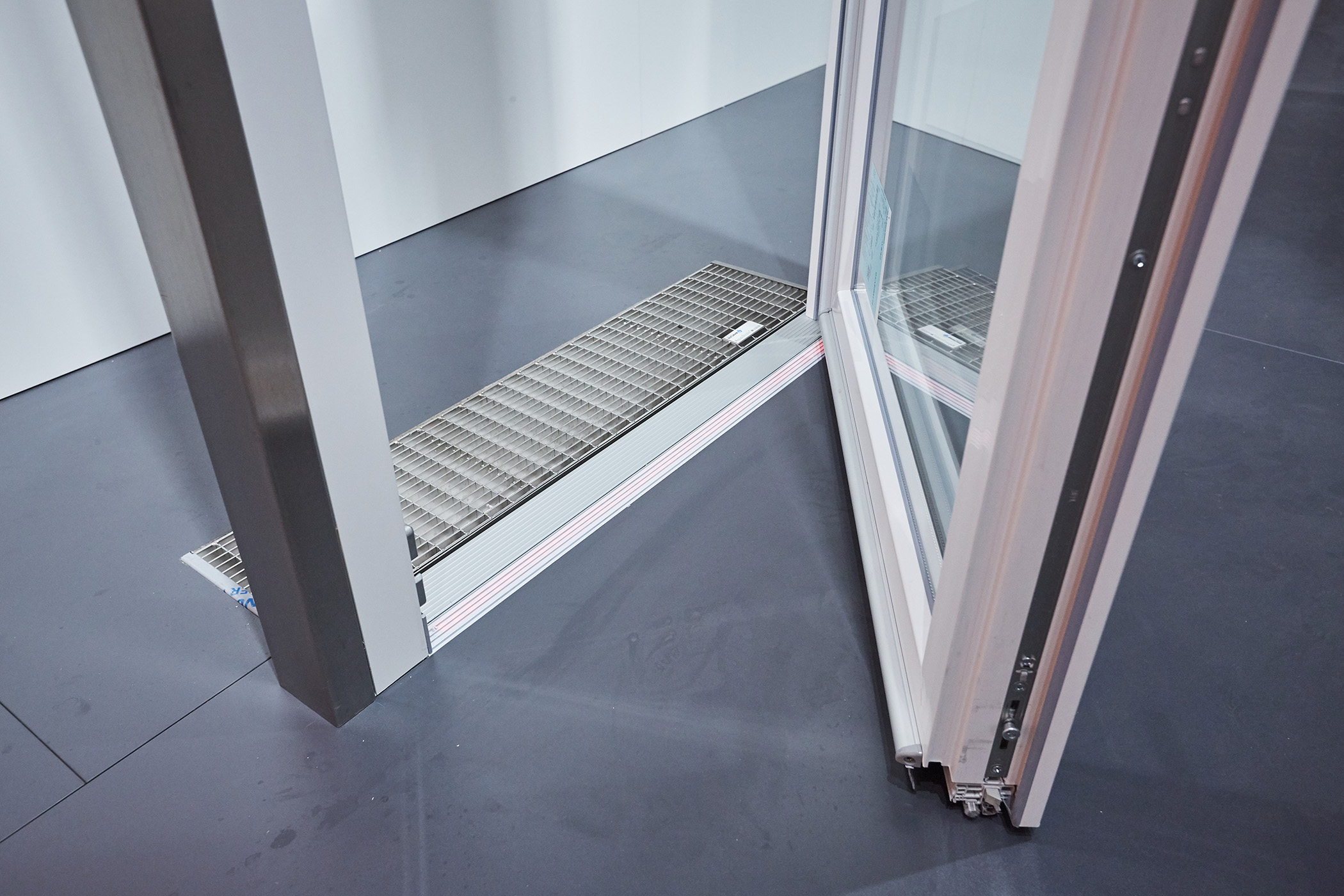

The Tilt&Turn hardware system for windows and balcony doors shaping the industry once again

  • Simple and fast installation
  • Reduced storage and logistics expenditure
  • High level of operating convenience and ideal functionality
  • RC 2 in the tilt position possible
  • Future-proof, Smart Home-capable

The Roto NX Tilt&Turn hardware system for surface-mounted and concealed hinge sides is innovative in terms of its efficiency, security, comfort and design. The future-proof hardware for PVC, timber and aluminium windows up to 150 kg sash weight offers lasting benefits for fabricators and end consumers.

While Smart Home, burglary protection, comfort requirements, sound insulation and energy efficiency are the topics preoccupying the sector, we continue to develop our components and assemblies to provide the significant advantages that ensure they are fit for the future and its particular challenges. Roto NX is based on Roto NT, the world’s best selling Tilt&Turn hardware system, and makes crucial enhancements to the design.
All components from the Roto NX modular system are perfectly coordinated and can be combined in almost any configuration.

Roto NX | One hardware system – limitless possibilities

Roto NX – Everything is better

Roto NX stands for impressive efficiency, high security, additional comfort and a contemporary design

Efficiency

  • Modular system
  • Reduced storage and logistics expenditure
  • Simple and rapid installation
  • High product quality
  • Long-term functionality

Security

  • Increased burglary protection with TiltSafe components: RC 2 is possible in the tilt position
  • Safe window installation, e.g. thanks to higher loads in the standard version
  • Maximum reliability and decision making certainty thanks to high product quality and breadth of the range

Comfort

  • High level of operating convenience and optimum functionality
  • Improved living comfort, e.g. thanks to optimised ventilation properties for a balanced room climate
  • Incorporation into home automation possible

Design

  • Attractive appearance from all angles
  • Elegant cover caps
  • Premium powder coatings
  • Concealed screws on the hinge side
  • A modern room design with large glass surfaces is possible thanks to high loads

Hinge sides

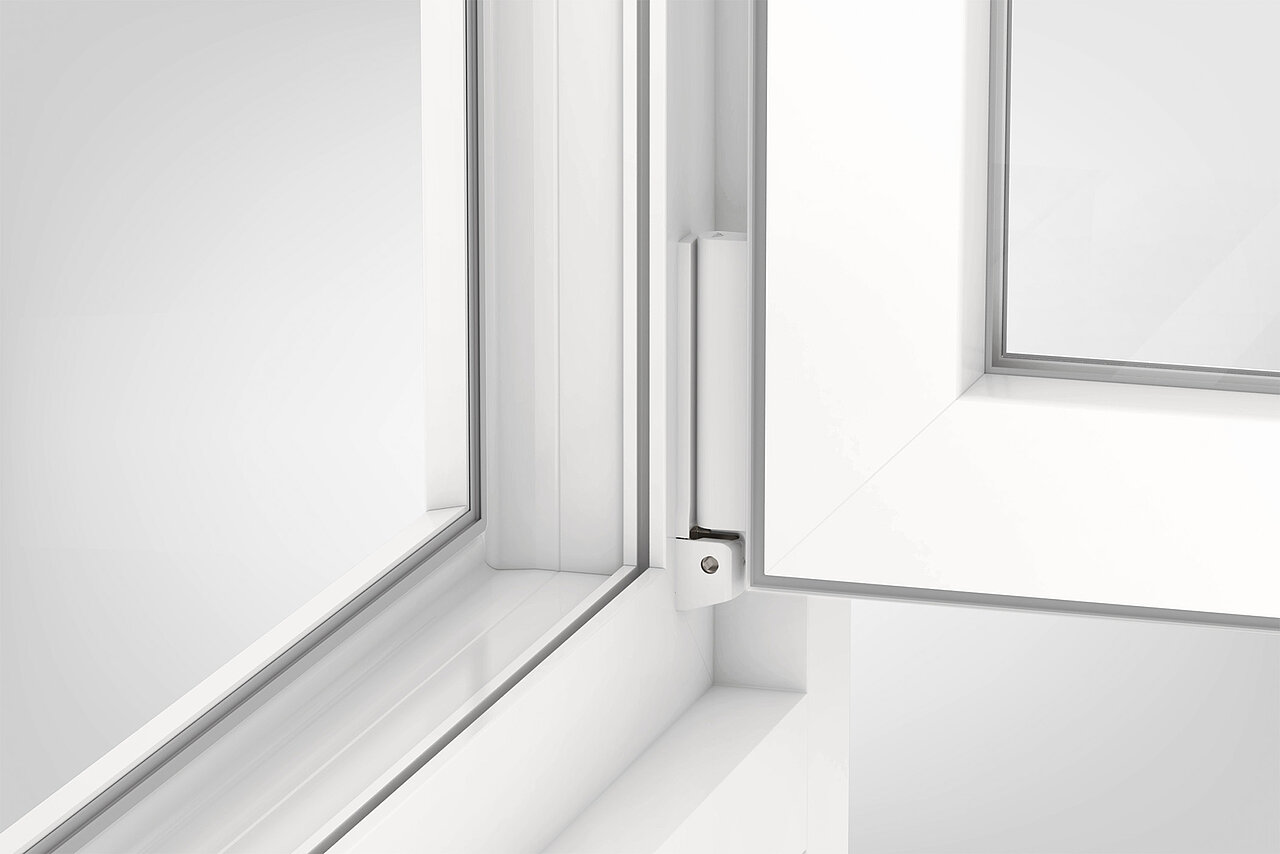

Hinge side PSurface-mounted PVC H3*
Hinge side TSurface-mounted Timber H3*
Hinge side A16Surface-mounted Aluminium, PVC H3*
Hinge side Power HingeSurface-mounted Timber H3*
Hinge side DesignoConcealed Timber, PVC H2*
Hinge side Designo A16Concealed Aluminium H3*
Hinge side RoyalConcealed Timber H2*

*Hardware certification scheme in accordance with EN 13126 8:2017. Class H3: 20,000 cycles / class H2: 10,000 cycles

The all-rounder for PVC windows with night ventilation: quick to produce, easy to adjust and minimal storage and logistics costs.

  • Added security thanks to a sash weight of 130 kg even in the standard version (can be increased to 150 kg)
  • Night ventilation function in the 135° handle position without an additional frame component
  • High level of operating convenience: the staged taper action of the integrated night ventilation harmoniously distributes the necessary operating force throughout the closing process. This effect is even more pronounced in large windows.
  • The stay bearing that is flush with the overlap of the sash allows more possible combinations with different window types (for example fanlights)
  • Hardware axes 9 and 13 mm
DownloadInstallation
Installation manuals, catalogues, videos etc.
 Marketing
Brochures, videos etc.
 Certificates
Certificates and declarations
 Roto NX | P
All available media

Hinge side T for timber windows with night ventilation is every bit as impressive as its counterpart for PVC windows.

  • Increased security thanks to efficient components up to a sash weight of 150 kg
  • Night ventilation function in the 135° handle position without an additional frame component
  • High level of operating convenience: the staged taper action of the integrated night ventilation harmoniously distributes the necessary operating force throughout the closing process. This effect is even more pronounced in large windows.
  • The stay bearing that is flush with the overlap of the sash allows more possible combinations with different window types (for example fanlights)
  • Hardware axes 9 and 13 mm
DownloadInstallation
Installation manuals, catalogues, videos etc.
 Marketing
Brochures, videos etc.
 Certificates
Certificates and declarations
 Roto NX | T
All available media

The solution for aluminium windows with a 16 mm hardware groove and night ventilation: with all the benefits of the Roto NX PVC modular system proven over its years of use.

  • Added security thanks to a sash weight of 130 kg even in the standard version (can be increased to 150 kg)
  • Tall windows up to a sash rebate height of 2800 mm are possible
  • Special formats such as arched and pitched windows with and without threshold can be implemented
  • The design is adapted to the existing Roto NX product range and harmonised for use with all elements.
  • Hardware axes 9 and 13 mm
DownloadInstallation
Installation manuals, catalogues, videos etc.
 Marketing
Brochures, videos etc.
 Certificates
Certificates and declarations
 Roto NX | A16
All available media

This aesthetically pleasing heavyweight is a unique solution designed specifically for floor-to-ceiling timber and timber-aluminium windows and balcony doors.

  • High sash weights of up to 200 kg with Tilt&Turn sashes and up to 300 kg with Turn-Only sashes can be implemented
  • Ceiling-height windows up to a sash rebate height of 3000 mm and sash rebate width of 1600 mm can be implemented
  • It can also be equipped as a TiltFirst version, e.g. for child protection in public buildings
  • Wide range of design options thanks to custom colour choice
  • Hardware axes 9 and 13 mm
DownloadInstallation
Installation manuals, catalogues, videos etc.
 Marketing
Brochures, videos etc.
 Certificates
Certificates and declarations
 Roto NX | Power Hinge
All available media

Roto NX Designo sets the standard when it comes to elegance in room design and is the ideal solution for attractive timber and PVC windows in premium private, residential and construction projects.

  • Exclusive design and attractive appearance thanks to concealed hinges
  • High sash weights of up to 150 kg can be implemented with a high level of security
  • Reduced installation effort: all adjustment possibilities can be carried out with just a 4 mm hex key.
  • Hardware axis 13 mm for timber and PVC (Designo II)
  • Hardware axis 9 mm for timber (Designo I)
DownloadInstallation
Installation manuals, catalogues, videos etc.
 Marketing
Brochures, videos etc.
 Certificates
Certificates and declarations
 Roto NX | Designo
All available media

Large window formats and high sash weights – the pioneering Roto NX Designo A16 Tilt&Turn hardware system is the ideal solution for aluminium windows with a 16 mm hardware groove in premium properties.

  • High sash weights of up to 150 kg are possible
  • Exclusive design and attractive appearance thanks to concealed hinges
  • A high level of efficiency thanks to installation in record time
  • Hardware axes 9 and 13 mm
DownloadInstallation
Installation manuals, catalogues, videos etc.
 Marketing
Brochures, videos etc.
 Certificates
Certificates and declarations
 Roto NX | Designo A16
All available media

Listed buildings have specific and unique requirements when it comes to renovating windows, particularly when the reveal is very close to the sash. The excellent turn-out curve of Roto NX Royal makes it the ideal choice for concealed hardware in these applications.

  • Ideal addition to concealed hinge sides Designo and Designo A16 in the historical preservation segment
  • Sash weights of up to 80 kg are possible
  • Hardware axes 9 and 13 mm
DownloadInstallation
Installation manuals, catalogues, videos etc.
 Marketing
Brochures, videos etc.
 Certificates
Certificates and declarations
 Roto NX | Royal
All available media

Highlights

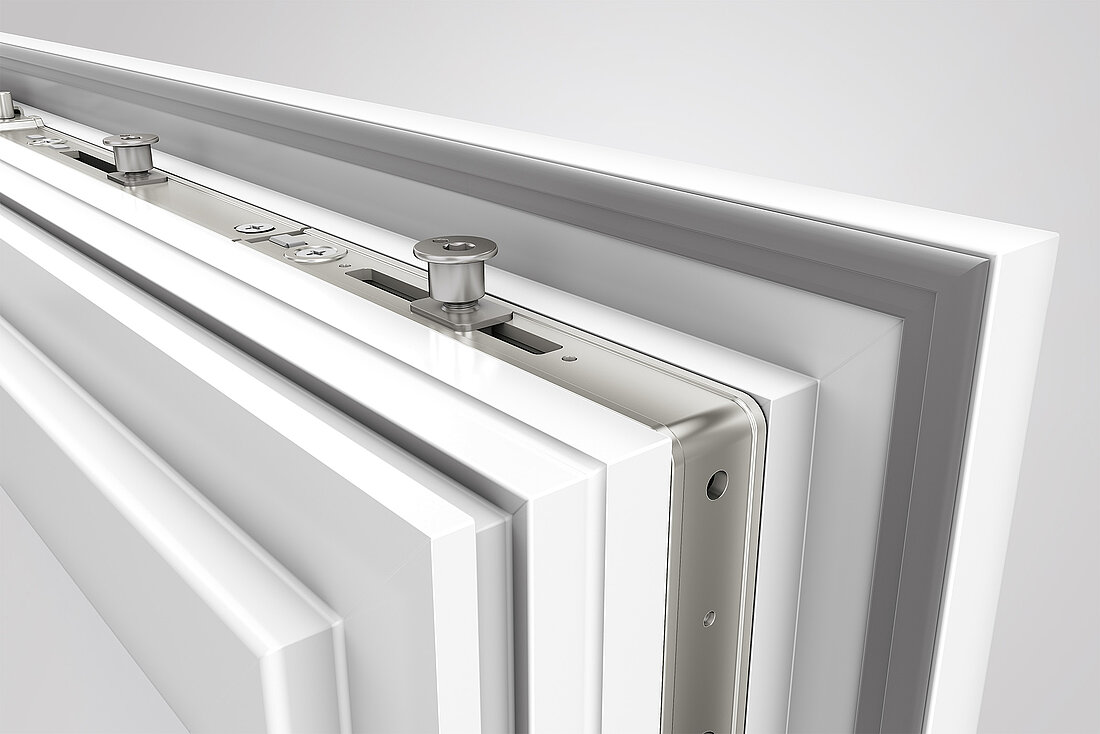

V cam

Windows with V cams are especially tightly sealed and burglar inhibiting while being simple and quick to install.

  • Higher rebate-clearance tolerances can be absorbed without the need for any adjustments
  • Robust design for consistent gasket compression and therefore permanently tightly sealed windows
  • Gasket compression adjustable with marking aid on the cam
  • Height adjustable
  • V cams engage behind the security striker across the entire surface for the greatest possible burglary protection

Roto NX V cam

Lever-operated espagnolette Plus

The lever-operated espagnolette Plus reduces the complexity of the operation steps, making it especially fast and easy to install.

  • Uniform position of the strikers in the first and second opening sashes, so only one installation jig is needed for both sashes
  • It is delivered in the open position, ensuring it can be quickly cropped and installed in the sash
  • Simple and convenient opening and closing
  • Minimal risk of injury since the lever does not protrude in the opening position at almost 180°

Steel frame components

Security tilt strikers and security strikers ensure burglary inhibition up to RC 3 and provide the reassuring feeling of being completely protected when at home.

  • High product quality thanks to steel frame components made of hardened steel with PVC bottom part
  • Secure connection between the top and bottom part ensures high stability
  • Increased operating convenience thanks to optimised run-in curve
  • Perfectly set up for the Roto E-Tec Control monitoring system

High backset espagnolette

This innovative espagnolette is perfect for wide sash frames with the handle positioned centrally. The benefit: minimised storage and logistics costs for retailers and fabricators.

  • Compatible configuration and minimal storage requirements: faceplate and gearbox or lock casing are disconnected at a backset of 25 and above.
  • EasyMix system: faceplate and gearbox or lock casing can be clipped into place easily.

Roto Sil surface

Windows are exposed to wind and weather. This is not a problem for the particularly corrosion-resistant and therefore durable Roto Sil surface. It boasts ideal properties that comply with class 5 corrosion protection in accordance with DIN EN 1670.

  • With regular maintenance and care, Roto Sil is also suitable for coastal areas in temperate regions.
  • Exception: properties that are directly next to the sea and are exposed to sea spray require a special surface with higher corrosion resistance.

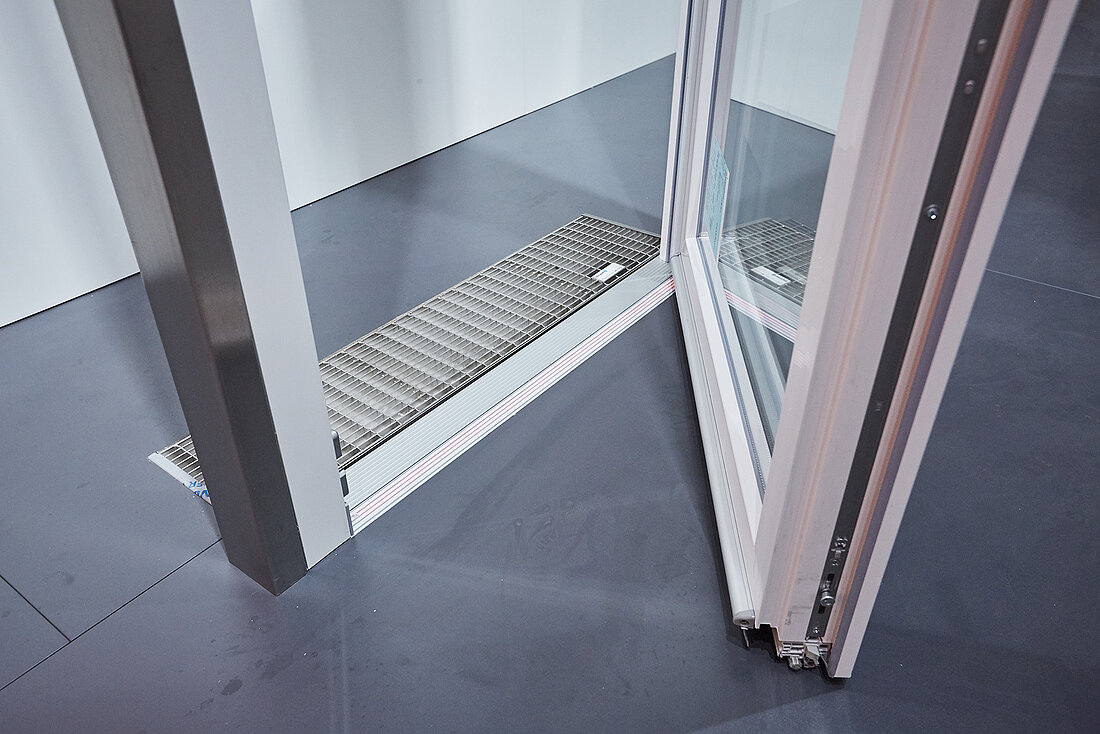

Space solutions

TiltSafe window

A ground floor window left tilted even at night and when nobody is at home? Windows equipped with Roto NX | TiltSafe mean there’s no need to worry:

  • Thanks to burglary inhibition in accordance with RC 2, TiltSafe windows provide a reassuring feeling of security, even when the sash is tilted.
  • These windows are available as a manual version (in accordance with RC 2) or with the electric Roto E-Tec Drive window drive-unit.

TiltFirst window

The Roto NX | TiltFirst window minimises the risks posed by a window that is open too wide or slams shut unexpectedly.

  • With its intelligent “tilt before turn” protective mechanism, it blocks complete opening if the window handle is locked.
  • At the same time, the tilted sash is locked in place when the handle is in the horizontal position.

Optional feature: windows with Roto Com-Tec sensors monitor the window status and reliably report changes to the Smart Home central unit.

Comfort window

The special thing about the comfort window is its long handle which is positioned at the bottom of the sash.

Thanks to its lever function and integrated forced control, the window is easier to tilt and turn than standard windows. The handle at the bottom is also much easier to reach.

Accessories

Roto NX lifting mishandling device

Lifting mishandling device

Innovative and durable: the adaptable spring (left / right) for fast correction in the event of incorrect release makes flexible installation possible. And that’s not all – the exceptionally robust spring mechanism ensures long-term functionality.

Roto NX mechanical balcony door bullet catch

Mechanical balcony door bullet catch

The robust spring structure ensures long-term functional safety and exceptional durability. The frame and sash can always be optimally positioned for particularly convenient adjustment thanks to the height adjustment of up to 7 mm on the sash component.

Roto NX arrestable brake stay

Arrestable brake stay

The arrestable brake stay enables patio doors and balcony doors to be conveniently locked in place at any turn position between 15° and 90°. Simply move the handle into the vertical locked position.

Roto NX anti-jemmy device

Anti-jemmy device

The Roto NX anti-jemmy device for timber and PVC windows improves the burglary protection of windows and balcony doors in accordance with resistance classes RC 1 N, RC 2, RC 2 N or RC 3 and is easy to retrofit.

Roto NX reverse-action centre lock

Reverse-action centre lock

Two mushroom cams engage behind both sides of the security striker at the same time. If an attempt is made to jemmy or move one of the two mushroom cams, the other one goes even further into the striker.

Roto NX wired contact elements

Wired contact elements

The concealed Roto E-Tec Control contact elements monitor the status of windows and doors. As soon as these are opened, a signal is sent to alarm systems or other electronic control systems. For greater security, comfort and energy efficiency.

Roto E-Tec Drive

Electric window drive-unit

The concealed Roto electric window drive-unit Roto E-Tec Drive that can be integrated into the hardware allows windows to be automatically tilted and locked by sensors, time switches or BUS systems. Manual operation of the window is possible at all times.
