Roto Patio Inowa
Intelligent hardware for tightly sealed sliding systems
- Sash weight up to 400 kg
- Dimensions up to 3000 mm wide and 3600 mm high, also in the 3:1 format

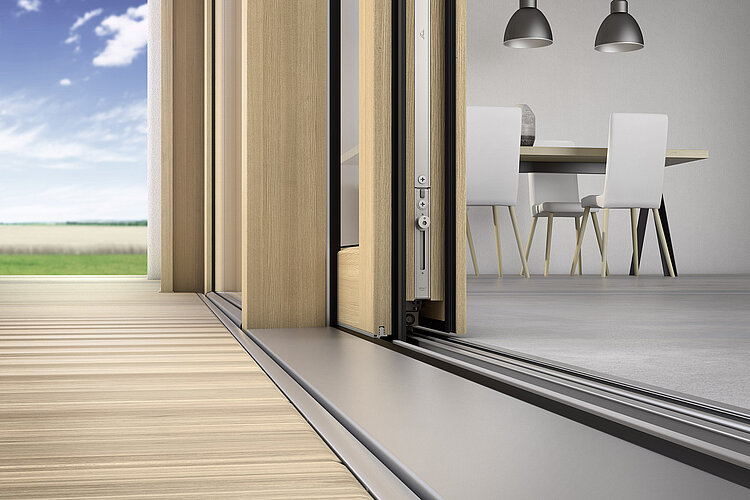

- Convenient and simple operation which requires little force thanks to innovative closing movement perpendicular to the frame profile
- Tightly sealed thanks to circumferential gasket and active control of all locking points including in the mullion
- Harmonious design thanks to concealed technology

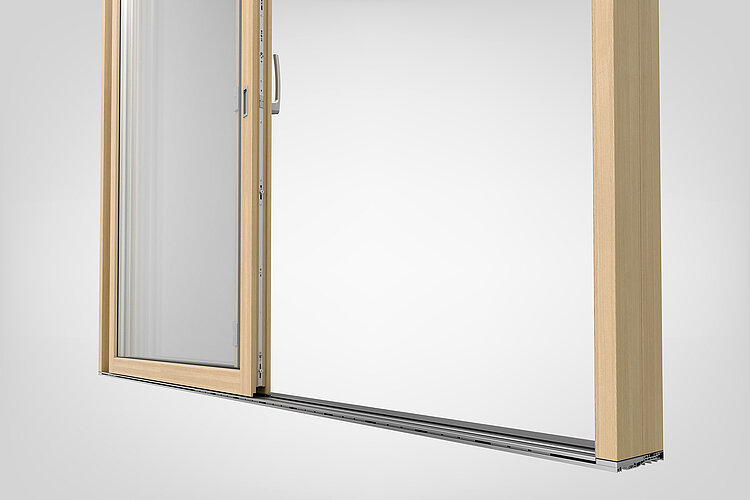

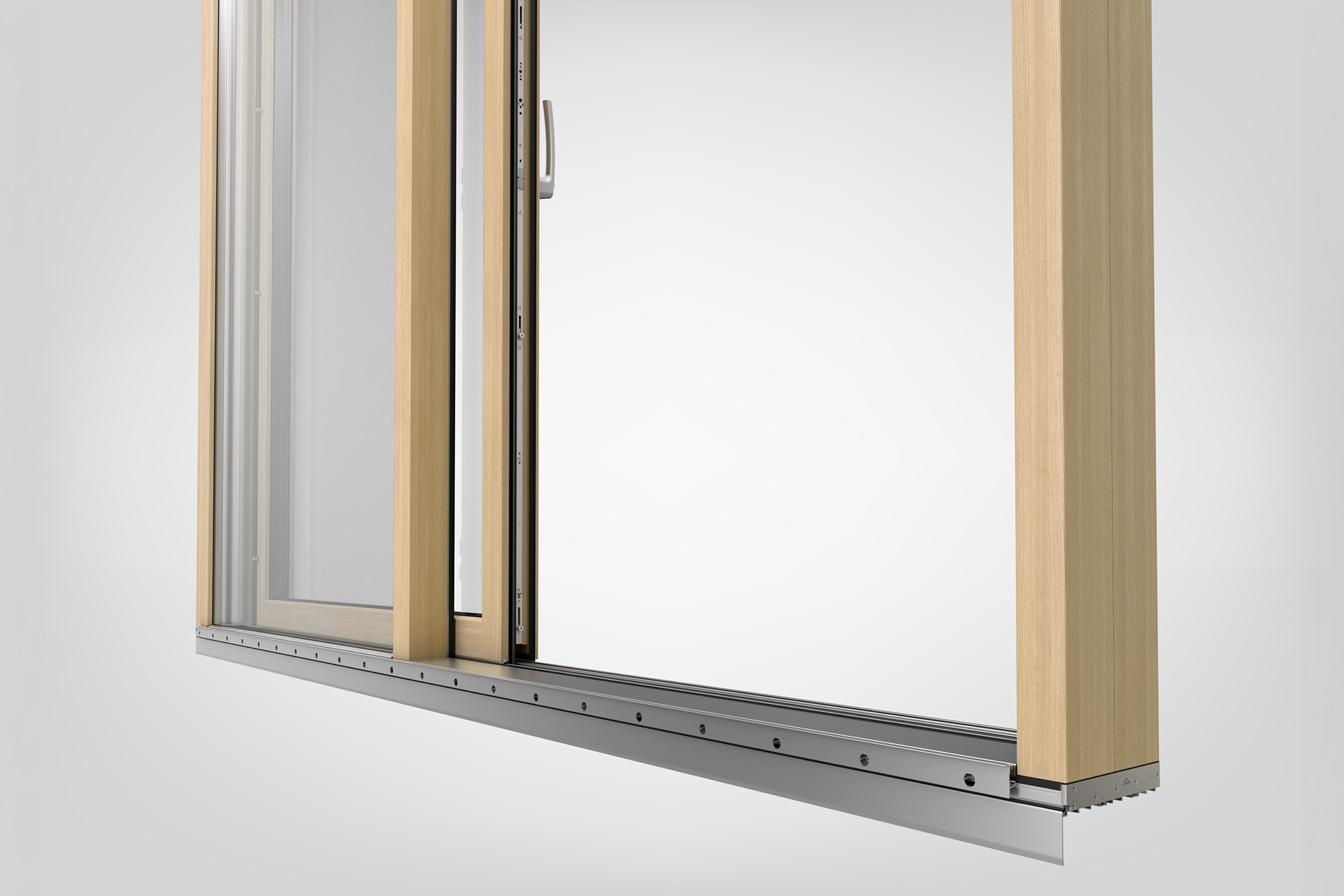

Roto Patio Inowa stands for a completely new sliding technology for sliding doors and windows made from timber, PVC, aluminium and timber-aluminium. The hardware is ideal for small to very large formats with a sash weight of up to 400 kg.
The innovative closing movement perpendicular to the frame profile and the specially developed Soft functions make the sliding elements particularly easy to operate. The concealed technology also allows for slimline profiles with a modern design.
Different formats, frame materials and design variants offer a wide application range.
Easy to use thanks to innovative closing movement perpendicular to the frame profile and construction on roller bearings.
Can be extended with Soft functions which protect the entire sliding element from the sash slamming uncontrollably against the frame. They do so by mechanically braking the movement of the sash when opening and closing.
Permanently tightly sealed, even in extreme weather events with storms and heavy rain, thanks to circumferential gasket and active control of all locking points.
The tight sealing also offers perfect sound insulation, even with high levels of external noise.

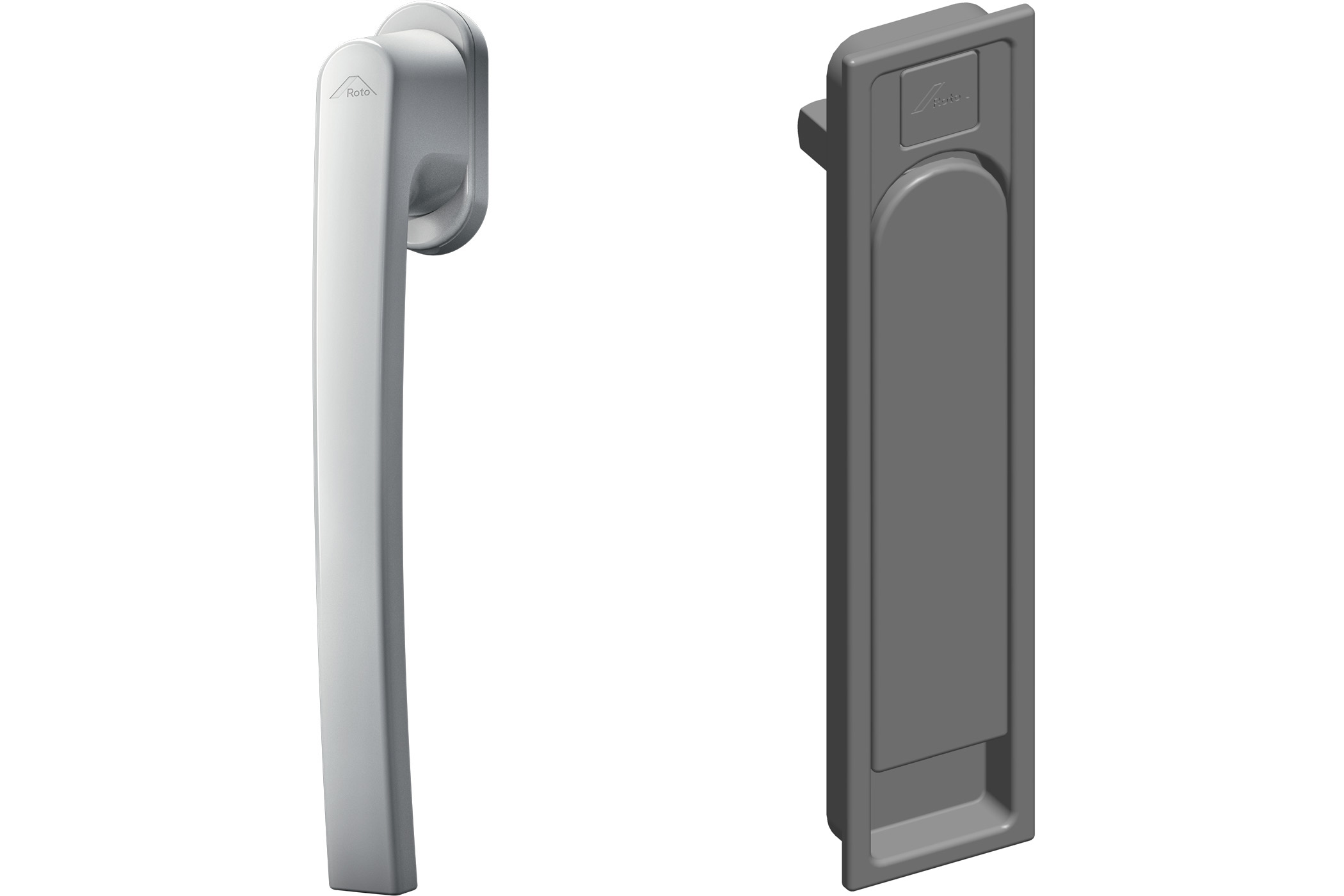

Harmonious appearance thanks to concealed technology and modern window handles.
Reliably burglar inhibiting in accordance with resistance class RC 2 thanks to circumferential hardware with active locking points.
- Anti-pushback function in the mullion prevents lateral movement and jemmying
- Lockable handle with drilling protection
- Can be extended with a wired contact element Roto E-Tec Control | MVS for opening and locking monitoring in accordance with VdS class B
Robust and well-made components, proven and tested many times over in accordance with the highest quality standards.
Roto Patio Inowa | 400
The version for very large sash formats up to 3000 mm wide and 3600 mm high
and sash weights up to 400 kg
Sliding large and heavy sashes is effortless; a longer handle is not necessary.
This is possible in part thanks to newly developed components which, although they have the same function as in Roto Patio Inowa | 200, are specially adapted for large and heavy sashes.

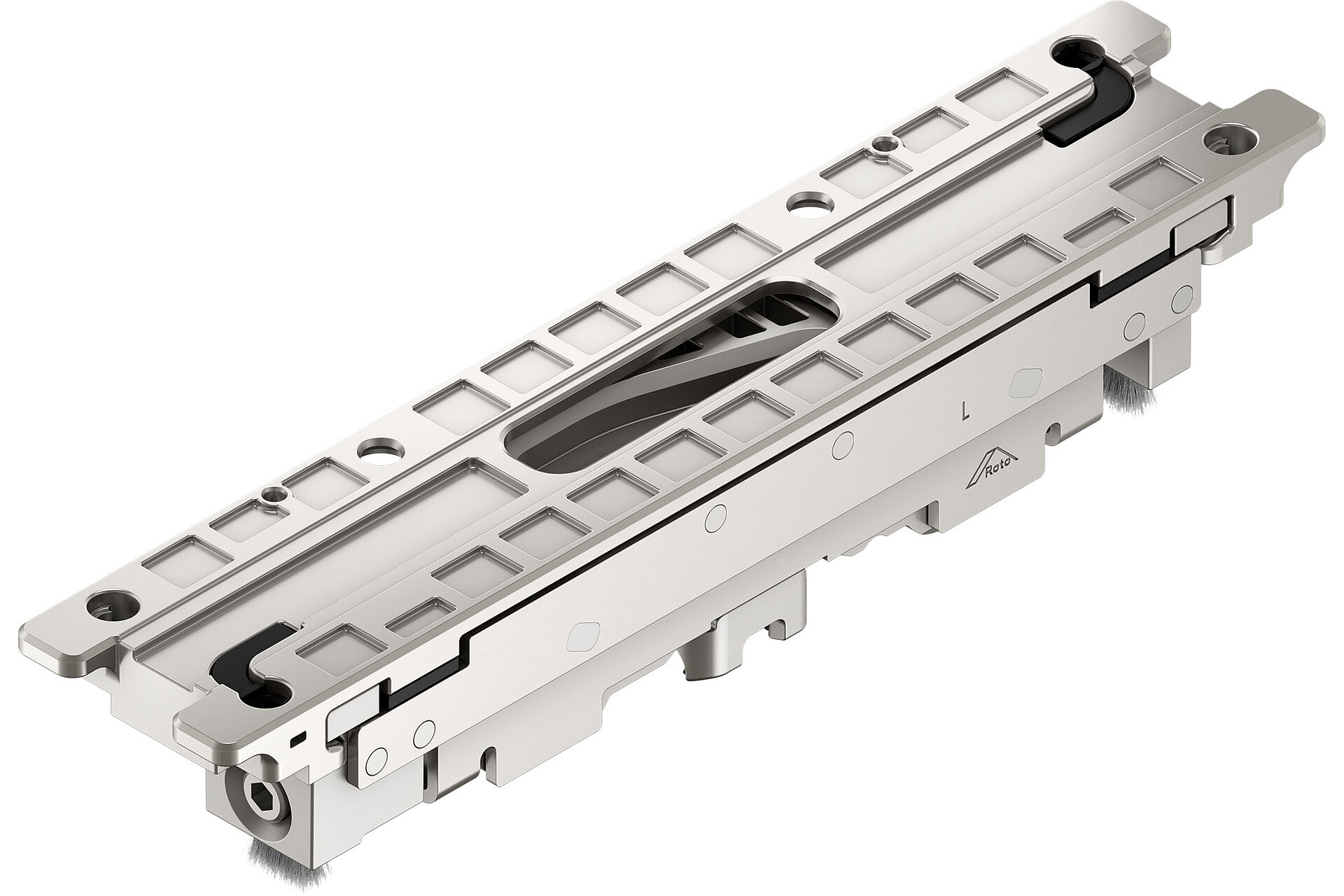

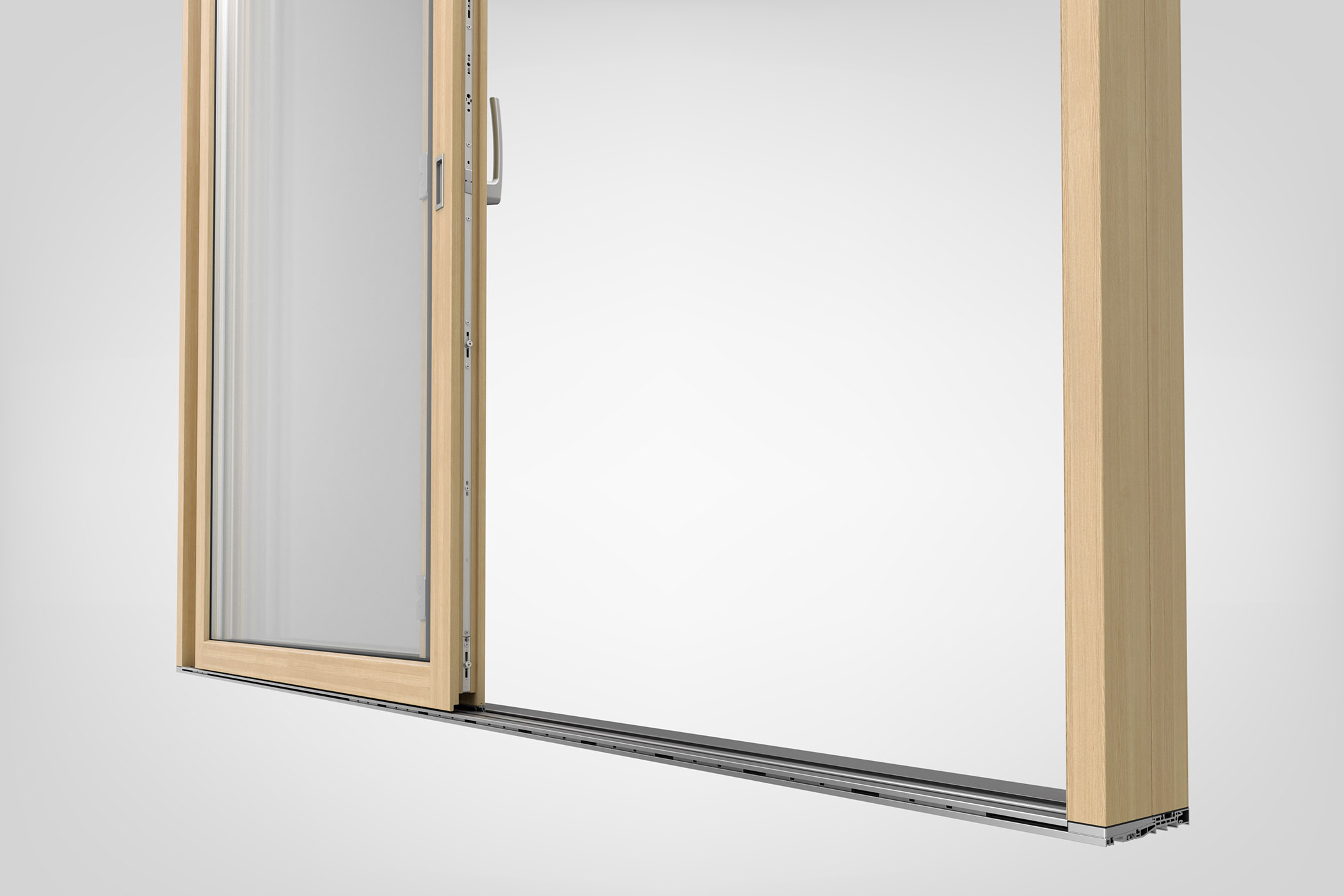

Ball-bearing-mounted roller unit
The roller unit contains robust, smooth-running rollers that effortlessly support the high weight.
The integrated linear ball bearing minimises rolling friction, so that even large and heavy sliding elements are easy to slide.
The integrated brushes keep dirt away from the rollers, therefore ensuring hassle-free operation.
Depending on the size, one or two stabilisation units are installed as an additional locking point at bottom centre.
These do not support any load but help guide the sash and function as a locking point to ensure consistent gasket compression.
The ball bearing K cams for timber, timber-aluminium and PVC profile materials replace the E cams in the centre locks and help with convenient operation of the sliding element.

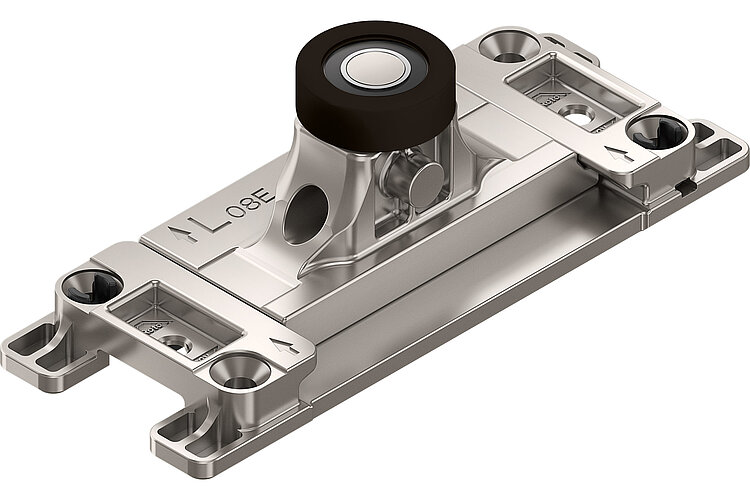

D13 control cams
The ball bearing D13 control cams for the aluminium profile material replace the D8 control cams and help with convenient operation of the sliding element.

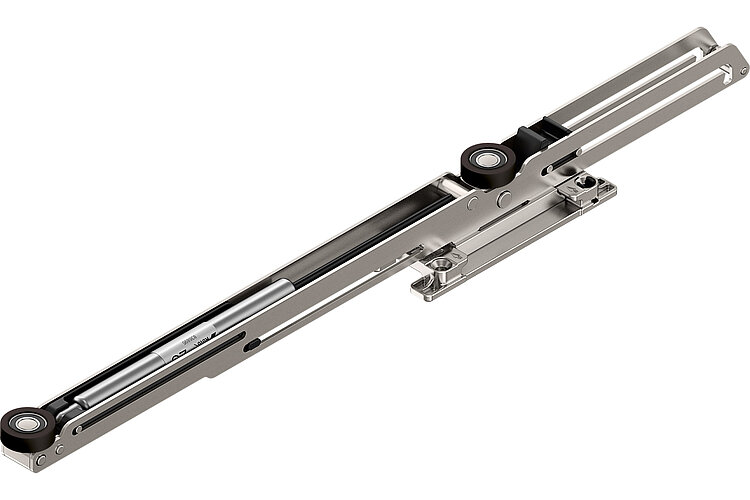

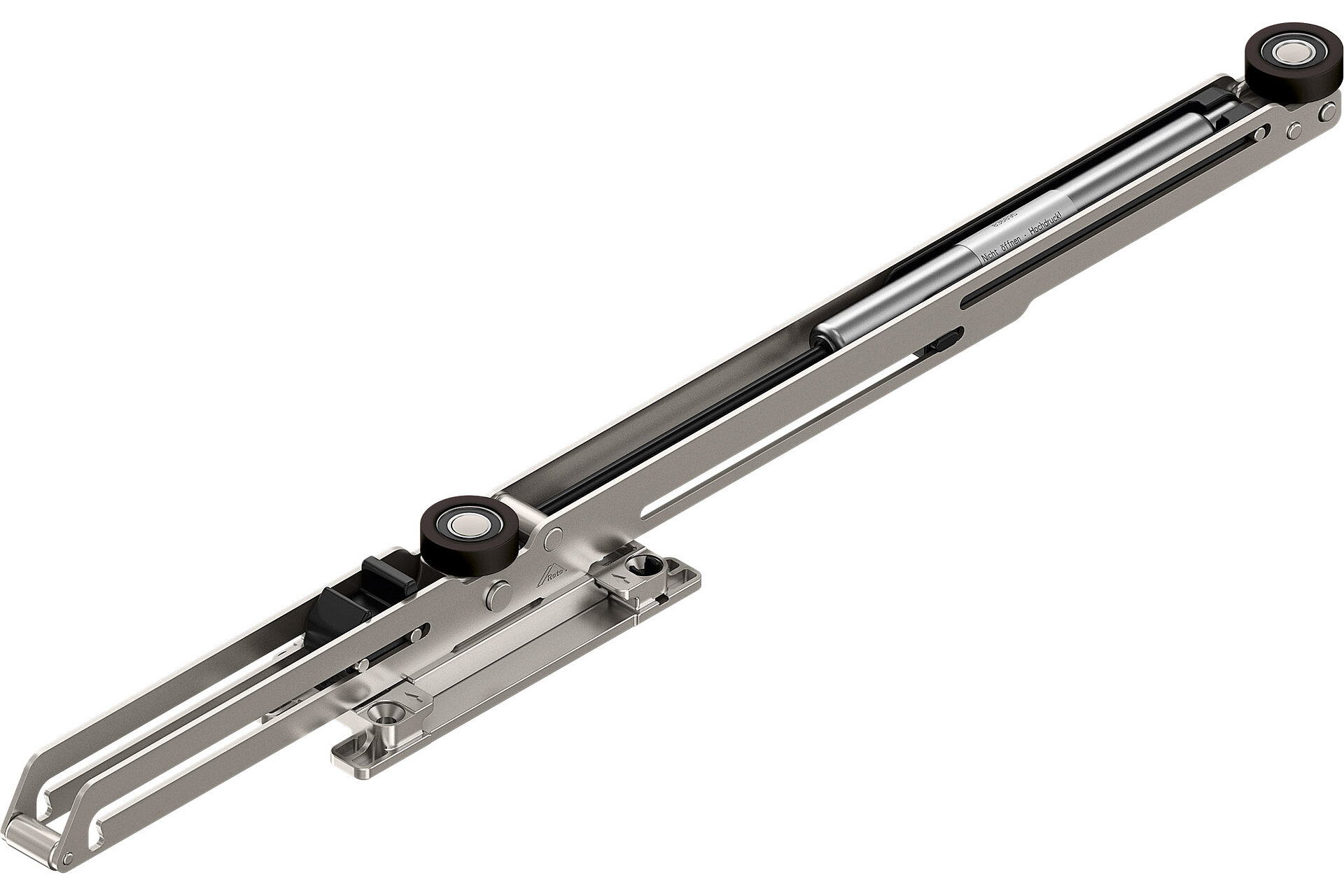

The SoftStop function is used at sash weights above 200 kg. Inserted on the espagnolette or mullion side, it ensures gentle closing or opening of the sash by braking it.
At sash weights up to 200 kg, the SoftClose and SoftOpen Soft functions are used.
|Roto Patio Inowa | 200||Roto Patio Inowa | 400|
|Sash (rebate) width||Max. 2,000 mm||Max. 3,000 mm|
|Sash (rebate) height|
Max. 2,500 mm
Max. 3,600 mm
|Sash weight||Max. 200 kg|
(Timber-aluminium profiles: max. 250 kg)
|Max. 400 kg|
|Retracting distance||8 mm||8 mm|
|Security||RC 2 / RC 2N||RC 2 / RC 2N|
|Sash arrangement||Diagram A, C und K||Diagram A, C und K|
|Profiles||Running inward and outward||Running inward and outward|
Efficient installation: The system is easy and quick to install with just a few screws per assembly.
Sophisticated aids such as drilling jigs play a role here, as do proven components from the Roto NX and Roto AL Tilt&Turn systems.
What’s more, the system can be optimally integrated into production processes.
