Roto Safe C | C600

Mechanical multipoint lockings for cylinder-operated doors

  • Stable, smooth-running espagnolette for simple operation
  • High level of burglary inhibition up to RC 3
  • Sound-absorbing whisper latch for closing the door quietly
  • Push-back safeguarded after one turn of the key
  • Latch can be reversed when installed for simple conversion on the construction site
Roto Safe C | C600

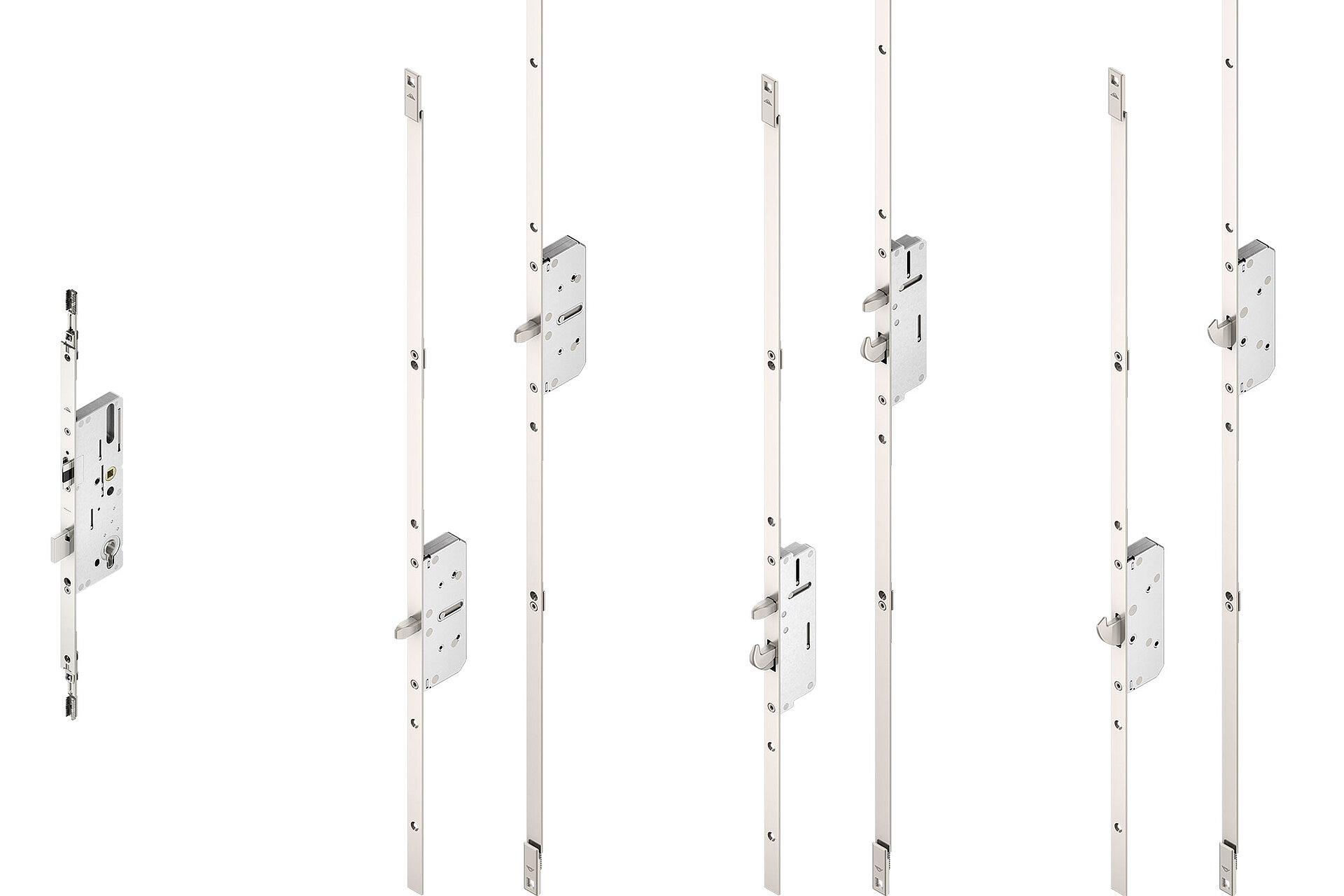

Roto Safe C | C600 is the mechanical multipoint locking system in which the main lock and additional lockings can be unlocked and locked using the profile cylinder. The high-performance system concept boasts a variety of options for security, comfort and efficiency.

New!

Deadbolt switch contact for door status monitoring at the main deadbolt (VdS-certified).

The locks are designed for use in main doors, apartment doors and back doors in all frame materials.

The equipment variants for the additional lockings offer functional freedom: from the simple 3-point locking with V cams through to the 17-point locking with combination locking and Quadbolts, requirements for affordability and high performance can both be met.

Security

Security

  • Push-back safeguarded after one turn of the key
  • E cams, V cams and bolts for basic burglary inhibition
  • Power wedge, combination locking and Quadbolt for a high level of burglary inhibition

Comfort

Comfort

  • Stable, smooth-running espagnolette for simple operation
  • Sound-absorbing whisper latch for closing the door quietly

Efficiency

Efficiency

  • Standardised locking patterns for reduced logistics and installation effort
  • Profile-specific frame components for efficient installation
  • Latch can be reversed when installed for simple conversion on the construction site

Design

Design

  • Door designs up to 3000 mm for freedom of design
  • Durable and scratch-resistant surfaces for a high-quality appearance in the long term
  • Backsets from 25 to 80 mm for a high level of flexibility

Quality

Quality

  • Certified continuous operation characteristics for permanent functional safety
  • Corrosion-resistant surfaces for a safe investment

Technical data

Backset
25 – 80 mm
Sash rebate height
1500 – 3000 mm
Distance
92, 94 mm
Spindle-receiver
8, 10
Faceplate variants
F16/20/24, U6x24
Security
RC 1 – 3

Accessories

Frame components

Frame components (mandatory accessories)

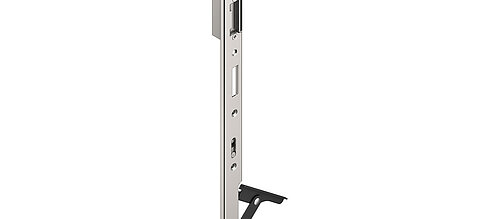

Roto Safe frame components ensure that the door is closed effortlessly and tightly. The profile-specific strikers, striker strips and lever-operated espagnolettes for double-leafed doors are adapted to the specific profile geometry.

ID latch

ID latch

The ID latch replaces the “chain” on the apartment door; it is activated from the inside via a knob and can be deactivated from the outside via the cylinder.

Additional locking device

Additional locking device

The additional locking device blocks the connecting rod with its own additional locking cylinder at an additional locking point.

Hinge retaining mechanism

Hinge retaining mechanism

Hinge retaining mechanisms provide additional burglary inhibition. They effectively prevent jemmying on the hinge side.

Profile cylinder

Profile cylinder

Cylinder in accordance with DIN EN 1303 (class 6 locking security). Drilling protection as standard and six-pin system with 240,000 combinations.

Knob cylinder

Knob cylinder

Cylinder in accordance with DIN EN 1303 (class 6 locking security). Drilling protection as standard and six-pin system with 240,000 combinations.
