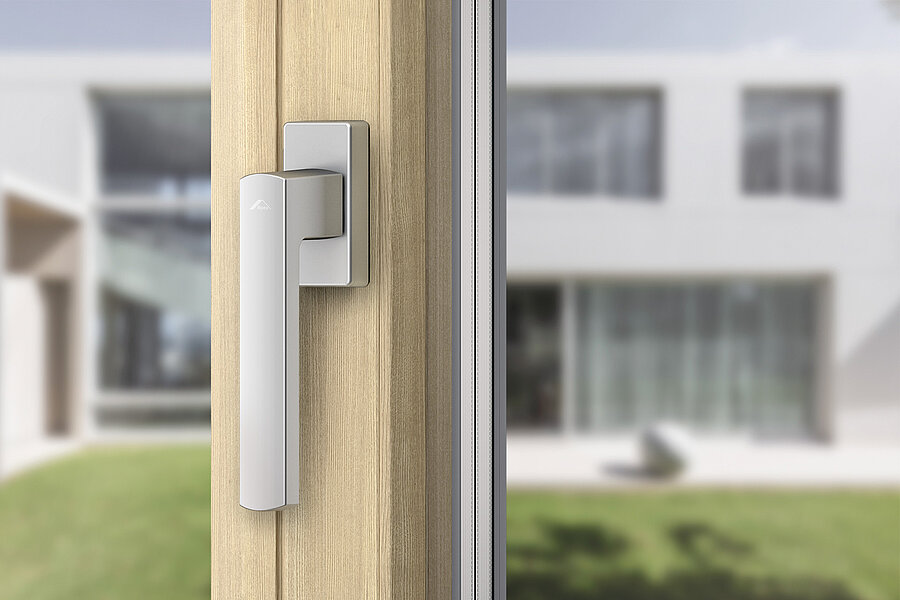

Roto Square
The clear range of handles
- A striking, angular design for modern architecture
- Maximum design freedom thanks to a wide range of variants
- VarioFit simplifies installation and retrofitting
Roto Square is synonymous with bold handle design full of character. Its angular design language makes a bold statement in modern architecture. It is striking and linear, yet comfortable to use. In this way, Roto Square combines cubist aesthetics with uncompromising comfort, reliability and ergonomics.

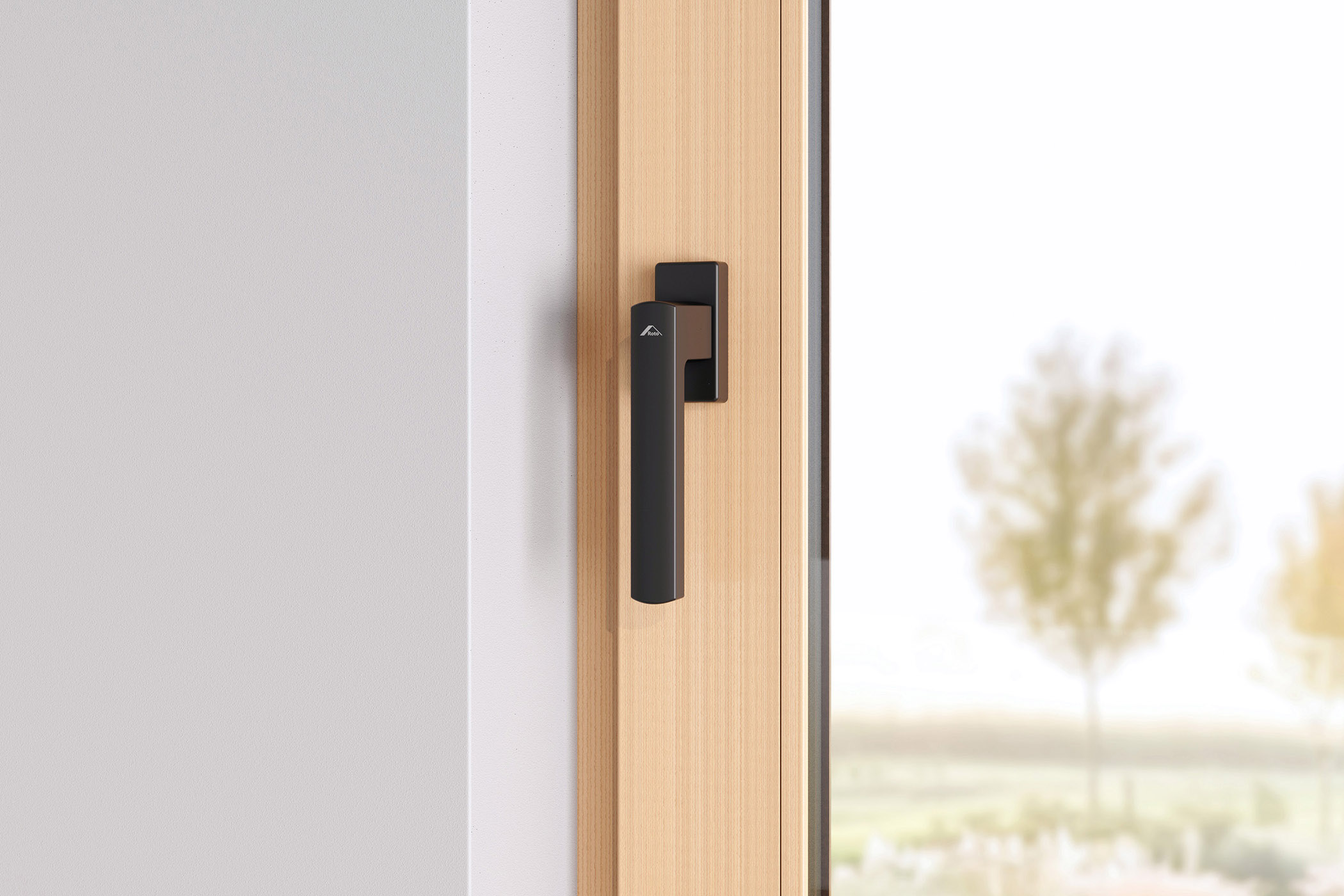

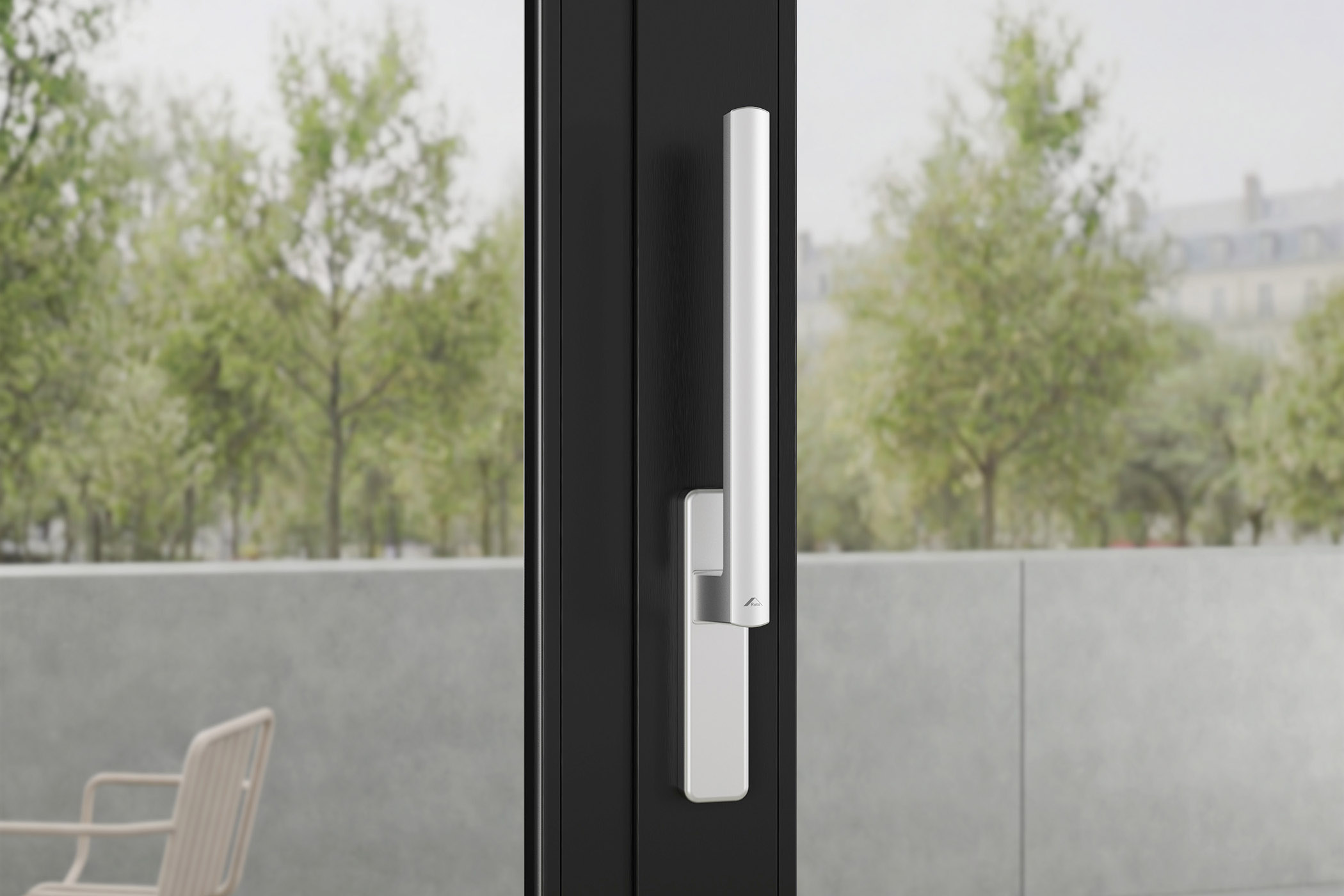

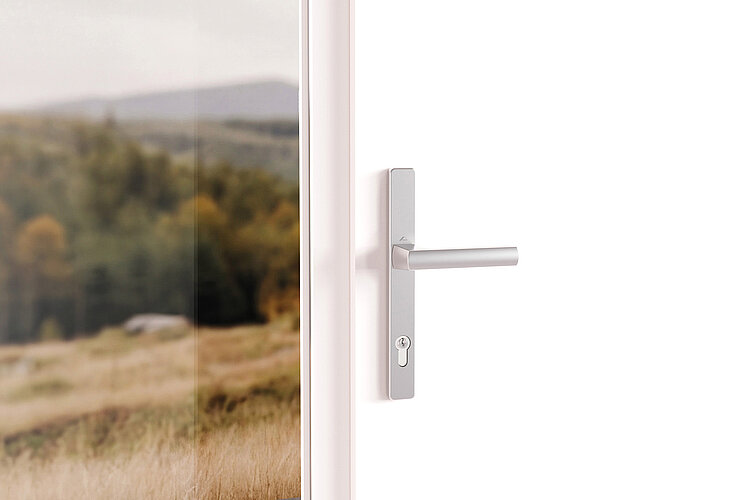

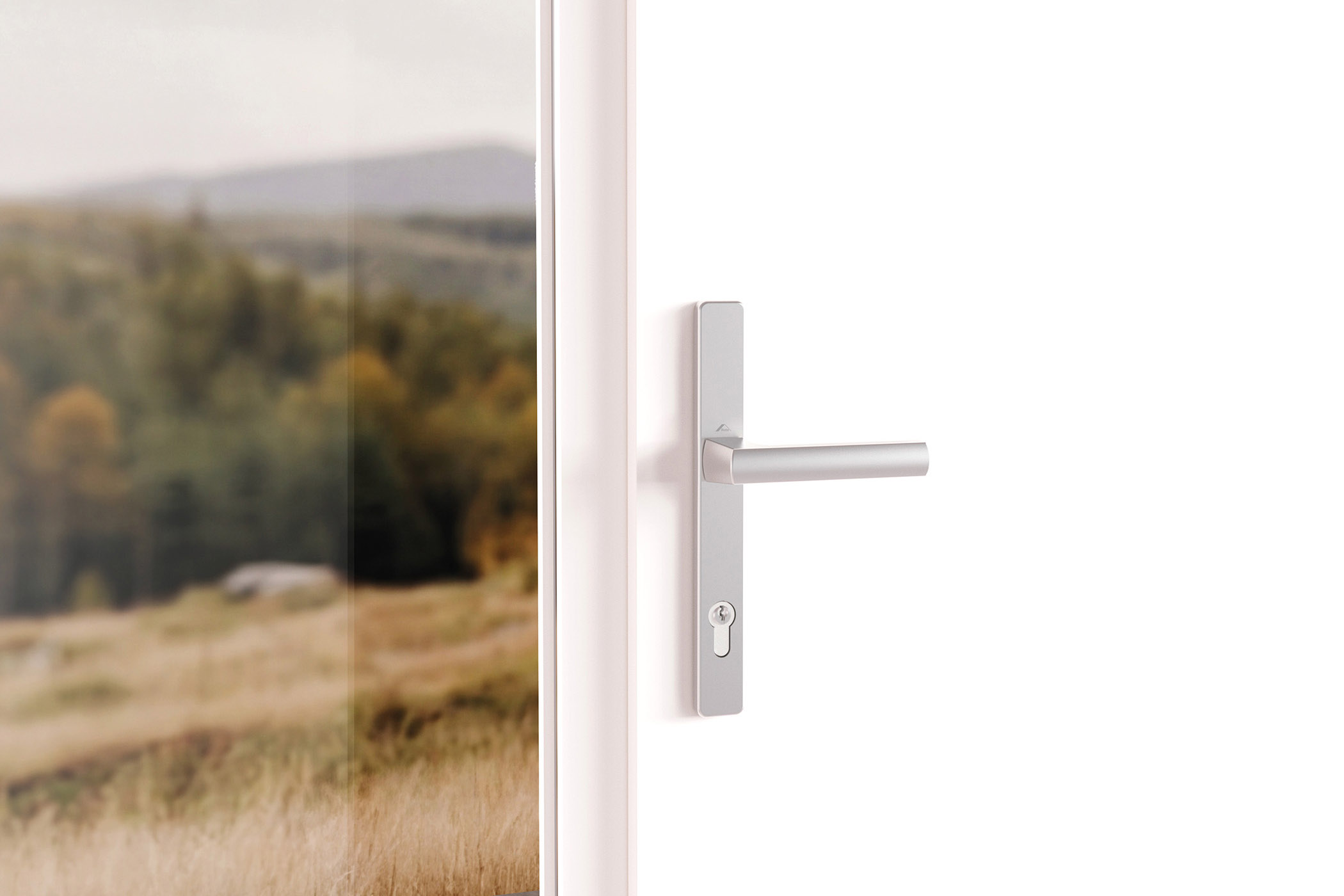

This range of handles covers many different versions, including models for windows, sliding doors, balcony doors and entrance doors made of timber, PVC and aluminium. For maximum design freedom and a harmonious overall appearance in all applications.
Roto Square | Crafted with straight lines. For pure comfort.

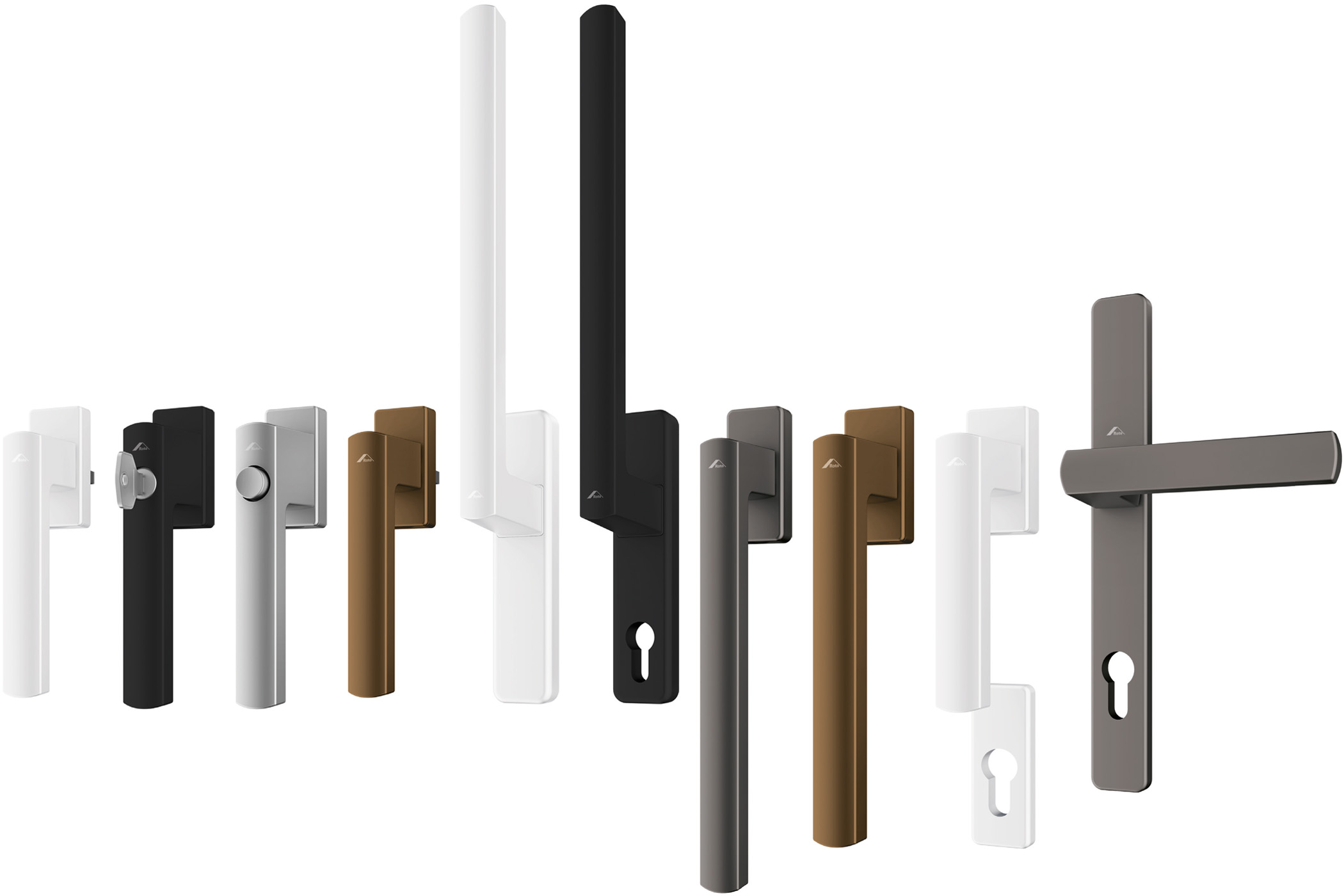

The following Roto Square handle variants are available to meet various security and comfort requirements:
- Standard; night ventilation
Basic handle without any additional function or with night ventilation. - Lockable 40 Nm

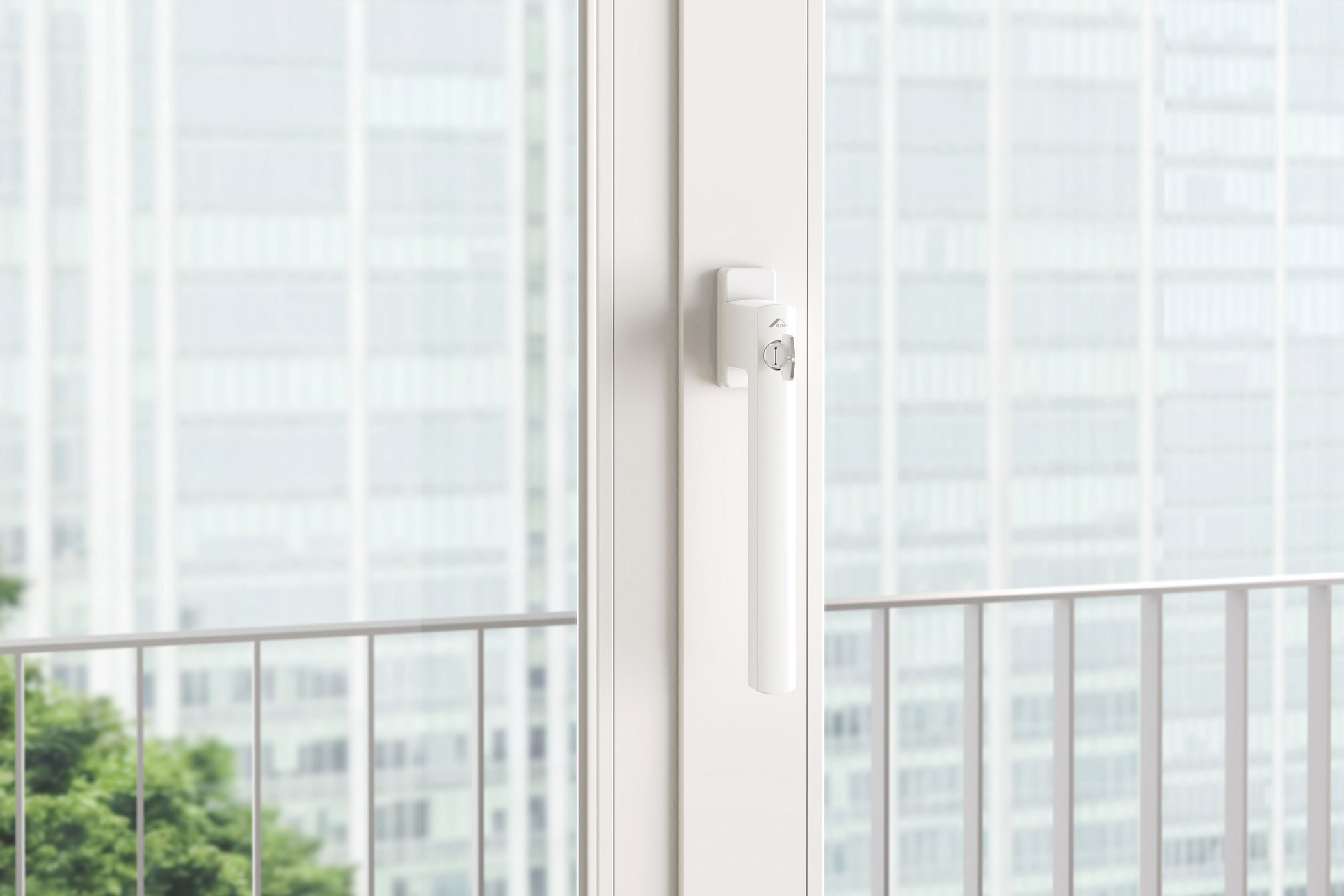

Equipped with turn cylinder for locking and unlocking; basic security, not tested; suitable as child safety lock. - Lockable 100 Nm
Turn cylinder; burglar-inhibiting retrofit product (DIN 18104-1); lock the closed or tilted window quickly and simply by pushing down the cylinder. - Secustik; night ventilation
Invisible security against manipulation from the outside, self-locking blocking mechanism; safety bolt; also available with night ventilation. - Push button
Forcible displacement of the hardware from the outside is prevented; the window can be operated when the button is pressed. - TiltFirst lockable 40 Nm
Lockable with turn cylinder, "Tilt before Turn". - Comfort
Handle with a lever length of 160 mm.
With the standard colours of
- R07.2 Traffic white
- R06.2M Jet black, matt
- R01.1 Natural silver
- R01.3 Titanium
- R05.5 Bronze
Roto Square offers a premium selection for complex architectural concepts. This way, the handles blend seamlessly into even the most sophisticated interior and facade concepts. Precise coordination, premium processing, carefully considered appearance. What’s more, Roto creates individual special surfaces upon request.
Installation
VarioFit – one handle, many possibilities
VarioFit makes flexibility the default. The handles can be used wherever different spindle lengths would otherwise be required, and offer maximum versatility for installation and retrofitting.
As such, Roto Square expertly handles different profile situations while reducing the variety of versions and storage requirements. This results in simpler processes, more efficient logistics and more certain planning. Real added value for new builds and renovations. And a range of handles optimised with cost-effectiveness in mind.
