Roto Solid B | 130 R

Two-part butt hinge for recessed aluminium doors

Clamp hinge with the appearance of a butt hinge
For main doors, back doors and balcony doors up to 120 kg
Can be used in various recessed aluminium profiles with Euro-groove 15 / 20
Suitable for inward and outward opening doors

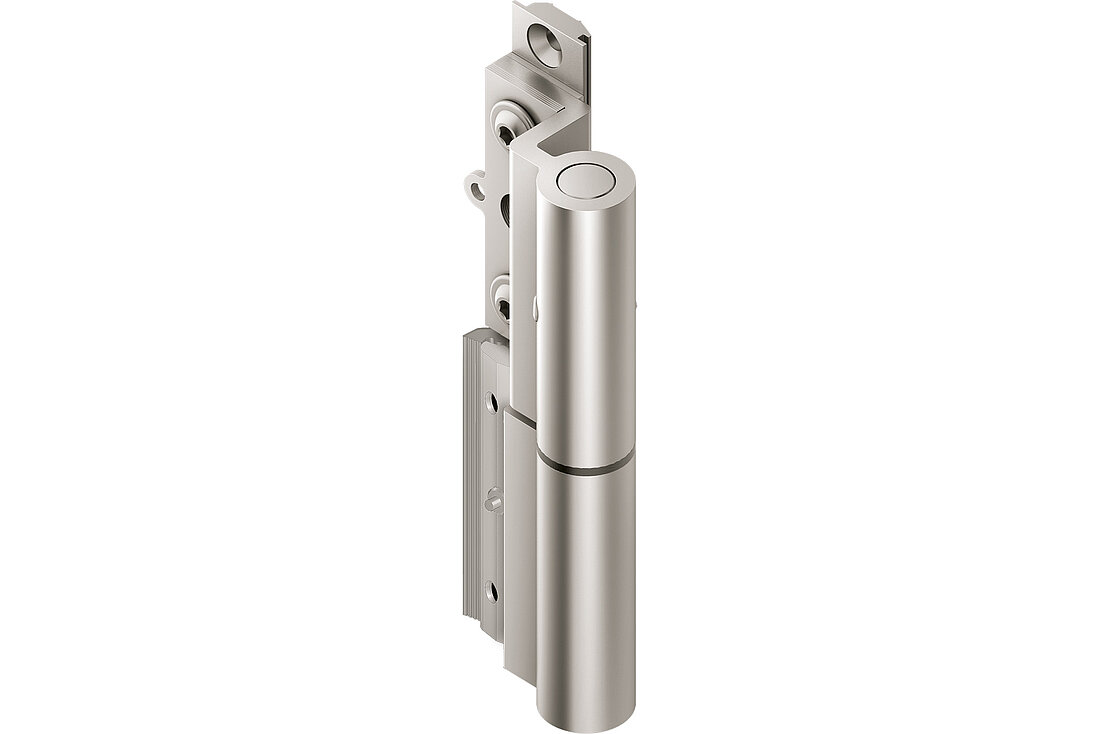

The Roto Solid B | 130 R two-part, clampable butt hinge is ideal for aluminium main doors, back doors and balcony doors up to a sash weight of 120 kg.

New

Thanks to the new, optimised clamping, Roto Solid B | 130 R can now be used in even more recessed aluminium profile systems with Euro-groove 15 / 20.

Butt hinges are in demand in door construction and are enjoying increasing popularity. Not only the appearance is crucial, but the functionality and stability too.

Roto Solid B | 130 R combines the visual advantages of a butt hinge with the benefits of a clamp hinge.
The hinge is swivelled in and clamped on the frame side. On the sash side, a clamping support-strip is secured in the sash with self-tapping screws and the sash hinge is then installed.

A standardised drilling diameter for all screws and pins also simplifies installation, making it more efficient.

Design

Slimline butt hinge design
Available in various RAL colours and electrolytically anodised surfaces
Custom coating of unpainted hinges possible at the window and door manufacturer

Comfort

Certified service life of 200,000 opening cycles in accordance with DIN EN 1935
Axis pin made of stainless steel supports durability
Maintenance-free thanks to high-quality self-lubricating bearing bush

Efficiency

Can be used on DIN left / DIN right for reduced logistics and administrative outlay
Simple and rapid installation thanks to clampable frame and screw-on sash component
Standardised drilling diameter for efficient production

Adjustment

Simple alignment of the shadow groove using packing plates

Technical data

Frame material	Aluminium
Sash weight	Max. 120 kg
Adjustment	Laterally adjustable: ±1.5 mm
Certification	CE-certified in accordance with DIN EN 1935:2002, hinge class 13

Accessories

Turn restrictor

The concealed turn restrictor for aluminium doors helps with gentle opening of the door, therefore protecting hinges, furniture and walls. The opening angle can be individually adjusted up to max. 125°. Precision adjustment for optimum damping is easy to carry out at a later point.
