Roto Safe H | H650

Mechanical multipoint lockings for lever-handle operated doors

  • Convenient locking using the door lever handle
  • Increased efficiency for a high level of operating convenience
  • Latch can be reversed when installed for simple conversion on the construction site
  • Sound-absorbing whisper latch for closing the door quietly
  • Multipart design for a high level of flexibility in logistics and processing

Roto Safe H | H650 is the mechanical multipoint locking system in which the main lock and additional lockings can be locked conveniently by pulling the door lever handle up. The system can then be blocked using the key.

New

The robust main lock of the Roto Safe | H650 with improved efficiency guarantees a high level of functional safety and pleasant operating convenience.

The available additional locking variants make locking solutions possible for customer groups who are conscious of price and focused on performance: E and V cams offer basic security functions. The multipoint lockings with E and V cams are available in a three-part design and offer maximum flexibility in production.

The high-performance combination locking made up of power wedge and bolt is used wherever increased burglary inhibition requirements need to be met.

The locks are designed for use in main doors, apartment doors and back doors in all frame materials.

Comfort

  • Convenient locking using the door lever handle
  • Increased efficiency for a high level of operating convenience
  • Sound-absorbing whisper latch for closing the door quietly

Security

  • E cams, V cams and bolts for basic burglary inhibition
  • Power wedge and combination locking for a high level of burglary inhibition
  • Robust main lock for a high level of functional safety – maximum permitted lever handle force of 20 kg

Efficiency

  • Standardised locking patterns for reduced logistics and installation effort
  • Profile-specific frame components for efficient installation
  • Latch can be reversed when installed for simple conversion on the construction site

Design

  • Door designs up to 3000 mm for freedom of design
  • Durable and scratch-resistant surfaces for a high-quality appearance in the long term
  • Backsets from 25 to 65 mm for a high level of flexibility

Quality

  • Certified continuous operation characteristics for permanent functional safety
  • Corrosion-resistant surfaces for a safe investment

Technical data

Backset
25 – 65 mm
Sash rebate height
1500 – 3000 mm
Distance
92, 94 mm
Spindle-receiver
8
Faceplate variants
F16/20, U6x24
Security
RC 1 – 3

Accessories

Roto Safe frame components

Frame components (mandatory accessories)

Roto Safe frame components ensure that the door is closed effortlessly and tightly. The profile-specific strikers and striker strips are adapted to the specific profile geometry.

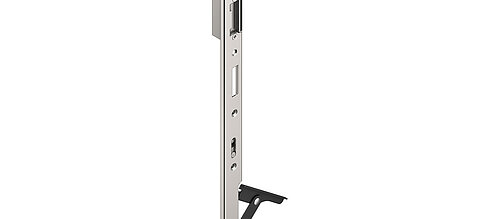

Roto Safe lever-operated espagnolette

Lever-operated espagnolette

The lever-operated espagnolette for double-leaved doors made from PVC and timber boasts a laterally guided lever which does away with the need for routing. Sizes of up to 3000 mm can be realised. Standardised locking patterns minimise storage requirements.

Roto Safe ID latch

ID latch

The ID latch replaces the “chain” on the apartment door; it is activated from the inside via a knob and can be deactivated from the outside via the cylinder.

Roto Safe additional locking device

Additional locking device

The additional locking device blocks the connecting rod with its own additional locking cylinder at an additional locking point.

Roto Safe hinge retaining mechanism

Hinge retaining mechanism

Hinge retaining mechanisms provide additional burglary inhibition. They effectively prevent jemmying on the hinge side.

Roto Safe profile cylinder

Profile cylinder

Cylinder in accordance with DIN EN 1303 (class 6 locking security). Drilling protection as standard and six-pin system with 240,000 combinations.

Roto Safe knob cylinder

Knob cylinder

Cylinder in accordance with DIN EN 1303 (class 6 locking security). Drilling protection as standard and six-pin system with 240,000 combinations.
