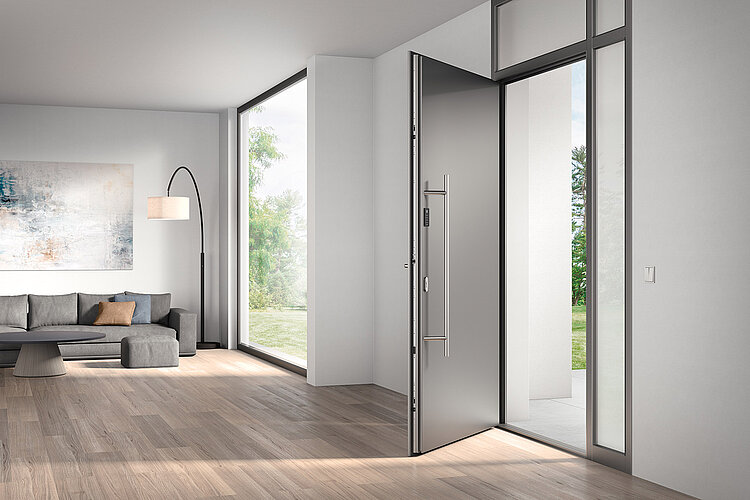

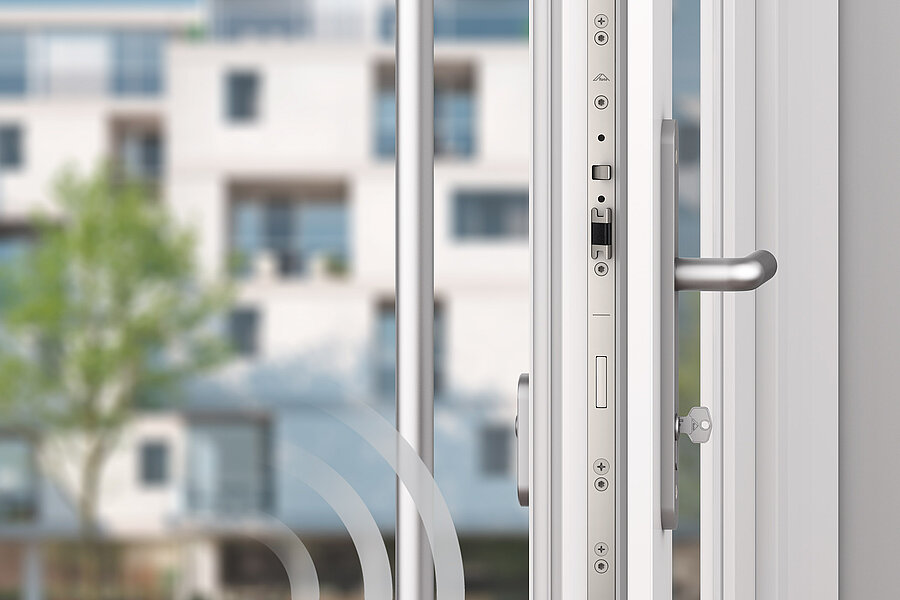

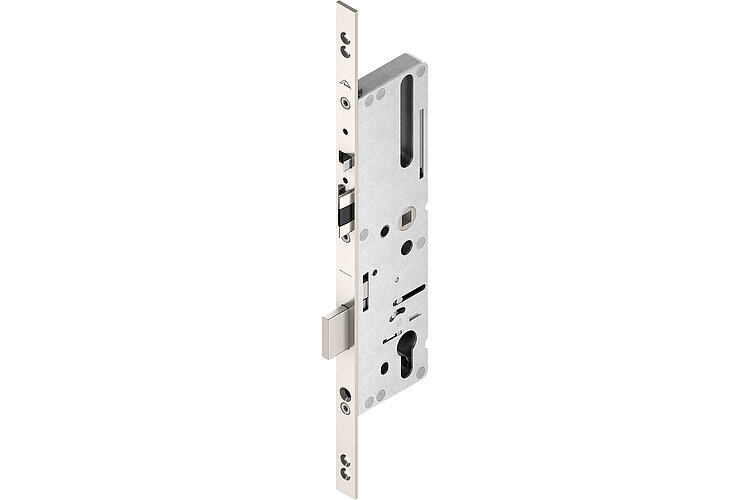

Roto Safe E | Eneo A
Electromechanical multipoint lockings for doors
- Automatic and secure locking without using the key
- Three automatically extending security locking points for increased burglary inhibition (RC 2 / RC 3)
- Quiet and powerful motor for effortlessly opening the door
- Very short unlocking time

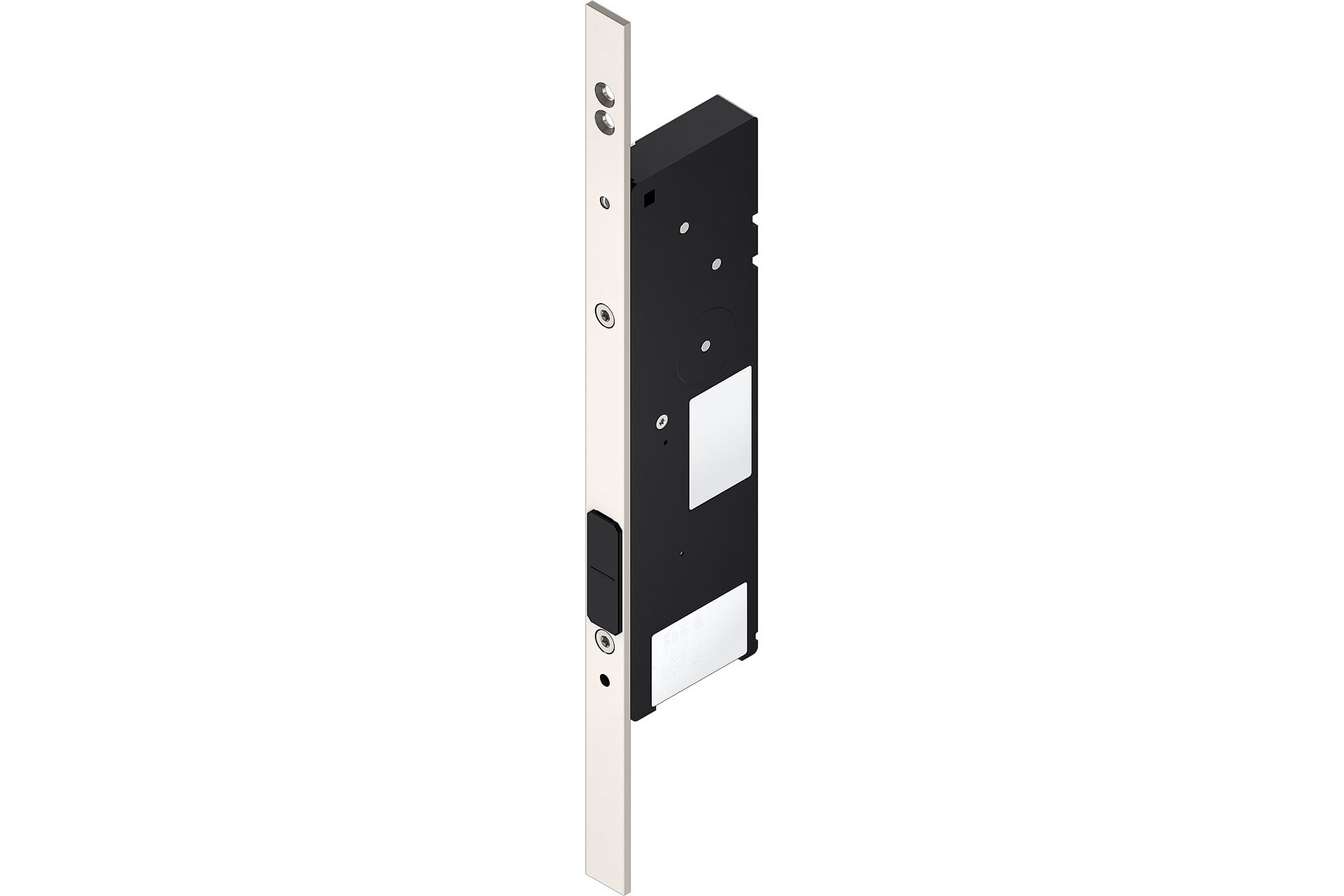

- Drive unit preassembled as Eneo A for maximum comfort, can be retrofitted as the Tandeo Upgrade-Kit for maximum flexibility
The Roto Patio Inline | SR hardware system for sliding doors with narrow aluminium profiles gives rooms an open, spacious atmosphere through the perfect combination of strength and flexibility. The system can be used for sashes up to a height of 3000 mm, width of 2000 mm and weight of 200 kg. It is robust and reliable, boasts the maximum corrosion protection and can be tailored to specific security requirements.
Stable and robust hardware system for Parallel Sliding elements
- High level of basic security
- Stability and durability
- Custom, flexible configuration
- Varied adjustment options such as an adjustable mishandling device
- Maximum corrosion protection and long-term functional performance class H3
- from the modular Roto Patio Inline sliding hardware system
Roto Patio Inline | SR: Strength meets flexibility
A safe bet
Roto Patio Inline | SR offers a high level of basic security and can be flexibly configured to meet specific security requirements.
- Robust hook with high pull-out strength
- Push-back safeguard prevents the hook being pushed back
- Anti-jemmy device prevents break-ins using the method of jemmying
- Optional lock casing for a lockable version of the system
A durable powerhouse
Roto Patio Inline | SR is incredibly stable and robust, meaning it will remain reliable for a long time to come.
- Adjustable mishandling device
- Strong hook
- Espagnolette support prevents warping
- Centring aid to compensate for construction tolerances and temperature fluctuations
- Long-term functional performance class H3 (20,000 cycles)
- Maximum corrosion protection (class 5)
As varied as customer requirements
Roto Patio Inline | SR gives you the flexibility to turn your customers’ dream designs into a reality. The system can be individually configured.
- Three espagnolette versions: compact, single-action or reverse-action
- Wide selection of espagnolette lengths
- Optionally with centring aid, extension or lock casing
- Custom number and position of centring aids
- Variable handle positions
Adjustment and maintenance made easy
Various adjustment options can be used to quickly and easily compensate for and correct construction tolerances and temperature fluctuations.
- Roller unit: +4 / -2 mm
- Mishandling device: +3 / -3 mm
- Hook: +3 / -3 mm
(from 1200 mm above the gearbox) - The roller unit is straightforward to install, while the roller assembly is easy to remove for maintenance purposes
This is how simple it is:
Roto Patio Inline | SR: straightforward adjustment options
Advantages
Stability
- Adjustable mishandling device
- Robust hook
- Espagnolette support
- Centring aid
- Long-term functional performance class H3
- Maximum corrosion protection (class 5)
Flexibility
- Three espagnolette versions
- Wide selection of espagnolette lengths
- Optionally with centring aid, extension or lock casing
- Variable handle positions
Security
- Strong hook
- Push-back safeguard
- Anti-jemmy device
- Optional lock casing
Adjustment
- Varied adjustment options
- Mishandling device: +3 / -3 mm
- Hook above gearbox: +3 / -3 mm
- Roller unit: +4 / -2 mm
Components
Good things come in threes
Thanks to the three different espagnolette versions and add-on components, you are able to flexibly produce sliding elements to meet the security needs of your customers and in many formats.
- Compact espagnolette with 1-point locking
- Single-action espagnolette with 1-point to 4-point locking
- Reverse-action espagnolette with 2-point to 4-point locking
Roller unit
The height adjustable tandem roller unit makes installation and replacement simple.
- For sash weights up to 200 kg
- Height adjustment: -2 / +4 mm
- Profile-related, clip-on adapters
- Easy-to-remove roller assembly
Strikers
The robust strikers are available in screw-on, clampable or slide-in versions – for secure locking.
Technical data
| Frame material | Aluminium |
| Sash width | Max. 2000 mm |
| Sash height | Max. 3000 mm |
| Sash weight | Max. 200 kg |
| Long-term functional performance class | H3 |
| Corrosion protection | Class 5 |
| Backsets | 17, 20, 22 mm |
| Security |
|
