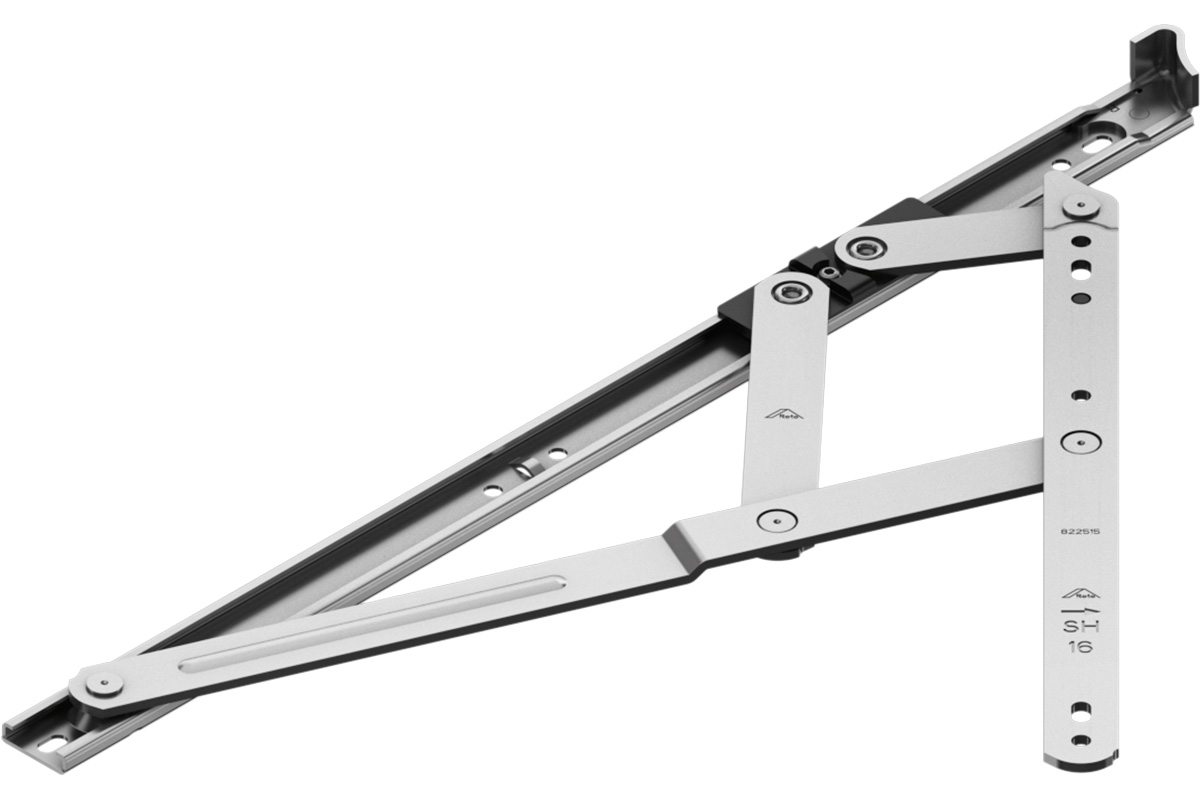

Roto FS Kempton

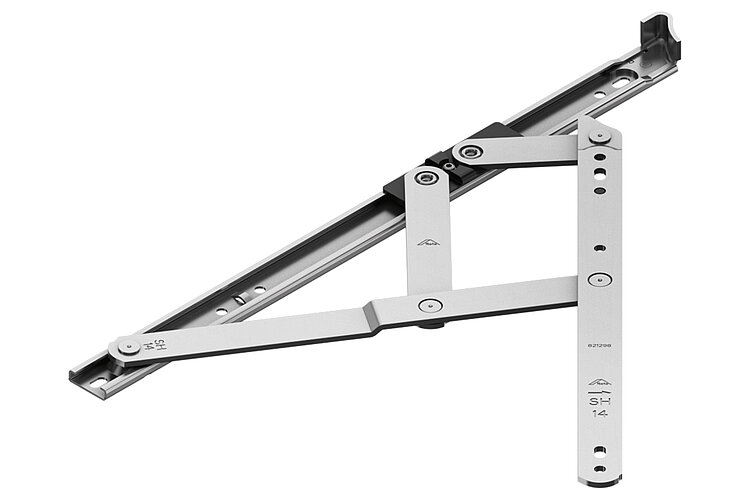

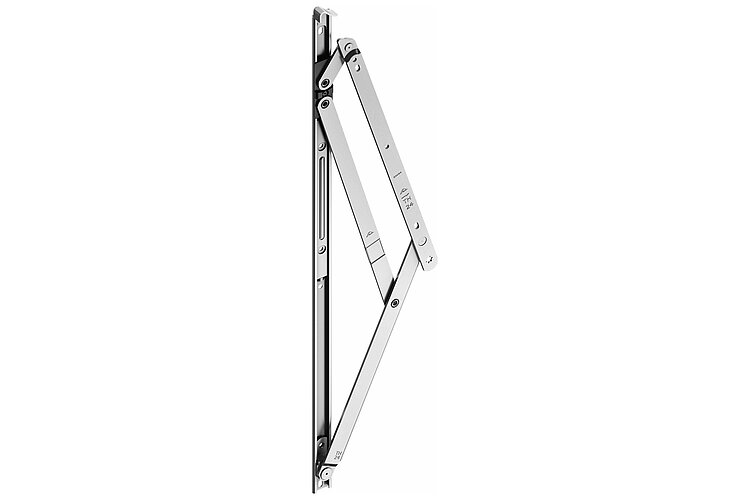

Stainless-steel friction stays for outward opening window

  • High impermeability
  • Hight operating convenience due to balanced friction stay
  • Sash weights from 24 up to 180 kg

The Roto FS Kempton product range provides efficient PVC, aluminium and timber outward opening window friction hinges, turn restrictors and accessories up to 180 kg sash weight.

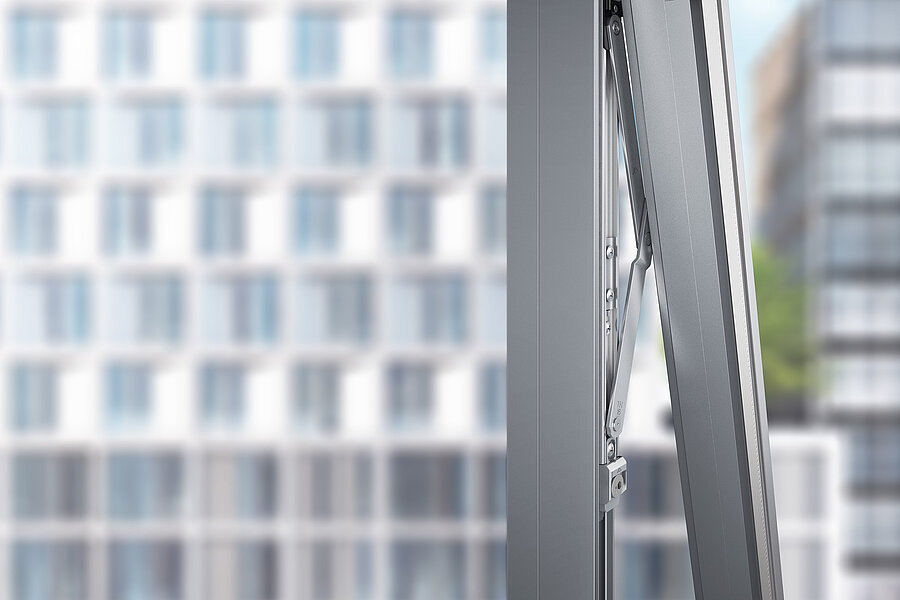

Outward opening windows with integrated friction hinges both limit the possible opening angle of the window and ensure that the sash is held open in any opening angle. As a result, friction hinges ensure that the window sash can be continually moved and monitored. In addition, these windows have an extremely high joint impermeability, especially if the window is exposed to strong winds.

Two friction hinge designs are available for different application areas:

  • High-quality ferritic steel models can be used in areas in which the hardware’s corrosion resistance is not required.
  • The austenitic steel version is recommended in coastal areas or in heavily industrialised regions.

Technical data

Sash width
max. 2000 mm
Sash height
max. 2800 mm
Sash weight
max. 24 – 180 kg
RC 1 – RC 3


Roto FS Kempton turn restrictor RD

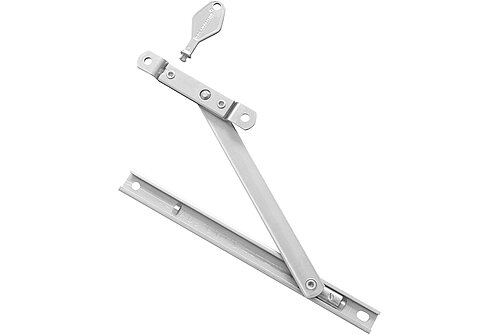

Turn restrictor RD

Heavy duty and detachable restrictor stays for commercial applications. Force resistance 1000 N when opened to restricted position.

Roto FS Kempton turn restrictor RH

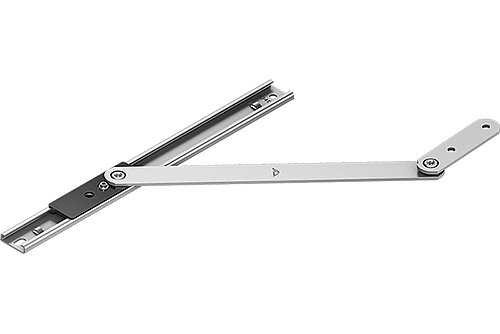

Turn restrictor RH

Heavy duty and restrictor stays for commercial applications. Withstands a force of 350 N for one minute.

Roto FS Kempton turn restrictor RL

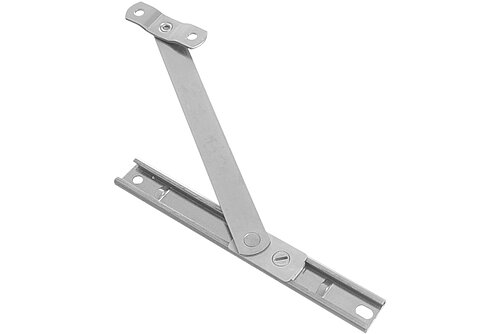

Turn restrictor RL

Lighter duty restrictor stays for standard and domestic applications.
