Roto Solid B | 170 R

Butt hinge for doors

  • For doors up to 160 kg
  • Especially suited to doors with double-sided sash-overlapping panels
  • 3D adjustment is possible without lateral offset of roller bodies
Roto Solid B | 170 R
Roto Solid B | 170 R
Technical data Downloads Question about the product?
Question about the product?

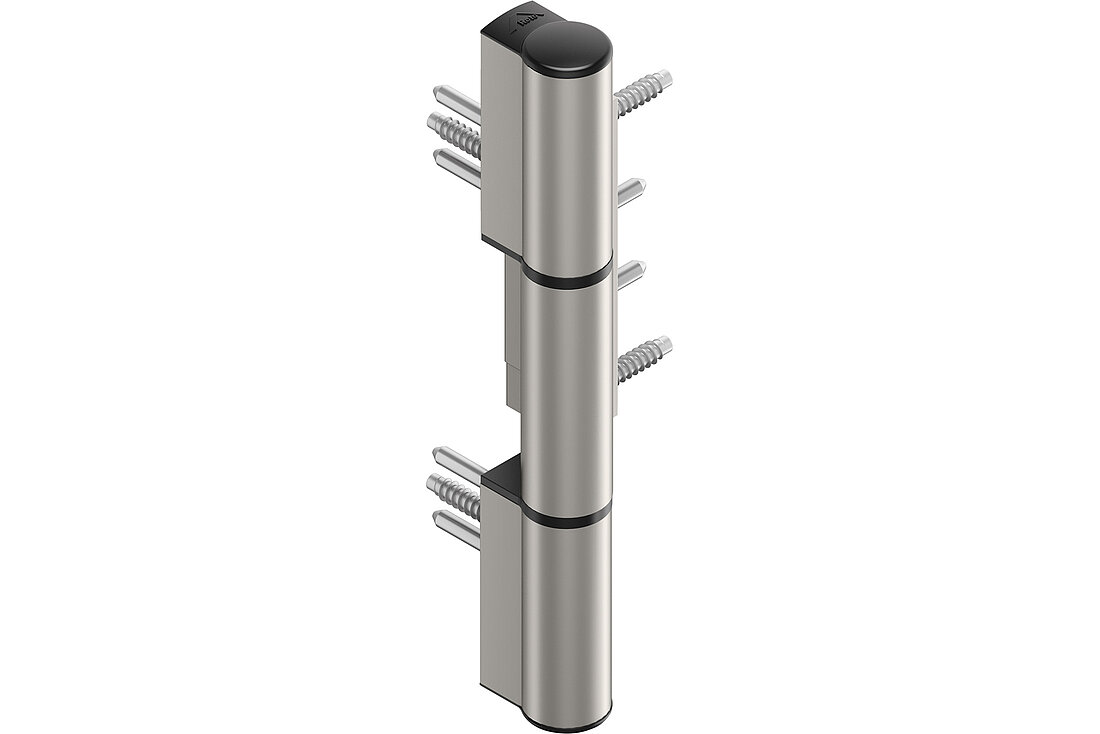

The Roto Solid S | 170 R three-part butt hinge is ideal for timber and PVC main entrance doors up to a sash weight of 160 kg.

New

The proven Roto Solid B | 170 R has been optimised and now boasts a range of new features:

  • Sash weights up to 160 kg
  • Additional hinge retaining mechanism for a greater stability
  • Installing and removing the axis pin upwards and downwards enables a quick and easy installation and removal of the door.
Roto Solid B | 170 R
Roto Solid B | 170 R

Butt hinges are in demand in door construction and are enjoying increasing popularity. Not only the appearance is crucial, but the functionality and stability too.

Thanks to their slimline hinge design, Roto Solid B butt hinges draw attention to the design of the door – they seamlessly blend into the overall appearance or are added as a visual accent and are therefore a particular highlight.

Design

Design

  • Wide selection of colours
  • Powder-coated or anodised surface
  • Slimline butt hinge design

Comfort

Comfort

  • With load-bearing components made from extruded aluminium for greater stability and reliability
  • Maintenance-free thanks to high-quality self-lubricating PVC bush
  • Possible installation and removal of the axis pin upwards and downwards

Efficiency

Efficiency

  • With load-bearing components made from extruded aluminium for greater stability and reliability
  • High load bearing capacity thanks to rolled and welded sash hinge made from refined steel
  • Maintenance-free thanks to high-quality self-lubricating PVC bush

Adjustment

Adjustment

  • Adjustment when fully assembled without undoing the fixing
  • Without lateral offset of roller bodies

Technical data

Frame materialTimber, PVC
Sash weight
  • Timber: max. 120 kg
  • PVC:
    - Max. 120 kg when using two hinges
    - Max. 160 kg when using three hinges
Adjustment
  • Laterally adjustable: ±2 mm
  • Height adjustable: +4 / -3 mm
  • Gasket compression adjustable: +0.5 mm with packing plate
Certification
  • Timber: RAL-certified, class II/120; SKG**
  • PVC: CE-certified in accordance with DIN EN 1935-2002, hinge class 11
